Actual Product May Vary From Image

6218 2NSE NAC

Name: 6218 2NSE NAC
Brand: Nachi Bearings
SKU: 6218 2NSE NAC
Availability: InStock

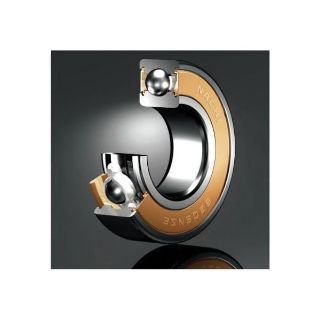

NACHI 6218-2NSLC3 6200 Deep Groove Ball Bearing, 90 mm Dia Bore, 160 mm OD, 1 Rows, 30 mm W, 96000 N Dynamic/71500 N Static Load

Manufacturer: Nachi Bearings

Manufacturer part number: 6218-2NSLC3

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
1	2	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

NACHI

Description

Single-row deep groove ball bearings are the most common bearing type in the world due to their versatility and performance. These bearings are available in a variety of seal, shield and snap-ring arrangements. Bearings with seals or shields are standardized and already contain the proper amount of grease. Open bearings will require lubrication. These bearings can sustain radial and/or axial loads and because of their simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation.

NACHI Deep Groove Ball Bearing, Series: 6200, 90 mm Bore, 160 mm OD, 1 Rows, 30 mm Width, Double Seal Closure, 96000 N Dynamic/71500 N Static Load, Steel Bearing, Buna-N Seal, Stamped Steel Cage, 2600 rpm Grease/4800 rpm Oil Maximum, 250 deg F

Application

Electric Motors, Automotive Alternators, Automotive Starters, Compressors, Blowers and Transmissions

Features

Excellent high speed capability
Good radial load capacity
Good axial load capacity in both directions
Low torque requirements during startup and operation
Low noise
Little/no maintenance required
Longer life - adopted NACHI original seal design to prevent contamination and grease leakage, contains special grease for wider temperature ranges and longer life
Smooth and quiet operation - the precision level of our bearing components has been enhanced to ensure smooth and quiet operation

Specifications

Bearing Material:	Steel
Bore Diameter:	90 mm
Cage Material:	Stamped Steel
Closure Type:	Double Seal
Load Capacity:	96000 N Dynamic/71500 N Static
Maximum Speed:	2600 rpm Grease/4800 rpm Oil
Number of Rows:	1
Outside Diameter:	160 mm
Seal Material:	Buna-N
Series:	6200
Temperature Rating:	250 deg F
Width:	30 mm
