6220-M FAG

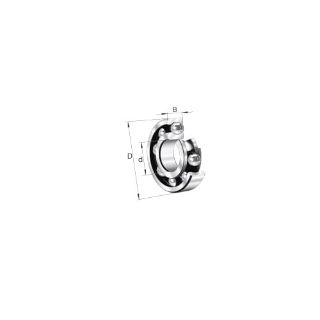

Picture of 6220-M FAG
Actual Product May Vary From Image

Product Details

Manufacturer:
INA
Manufacturer part number:
6220-M
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$803.71 / EA

Description

Brand Name

FAG

Description

FAG Deep Groove Ball Bearing, Series: 62 Series, 100 mm Bore Dia, 180 mm Outside Dia, 1 Row, 34 mm W, Open Closure, 130000 N Dynamic/93000 N Static/5400 N Fatigue, Steel Bearing, Solid Brass Cage, 5000 rpm Maximum, 120 deg C, Uncoated

Standards

Meets to DIN 625-1

Specifications

Bearing Material:Steel
Bore Diameter:100 mm
Cage Material:Solid Brass
Closure Type:Open
Finish:Uncoated
Load Capacity:130000 N Dynamic/93000 N Static/5400 N Fatigue
Maximum Speed:5000 rpm
Number of Rows:1
Outside Diameter:180 mm
Series:62 Series
Temperature Rating:120 deg C
Width:34 mm

Products Specifications

Bore Size
100 mm
Brand Name
FAG
Measuring Units
Metric
Outside Diameter
180 mm
Width
34 mm
