Home / 6228-C3 TKN

6228-C3 TKN

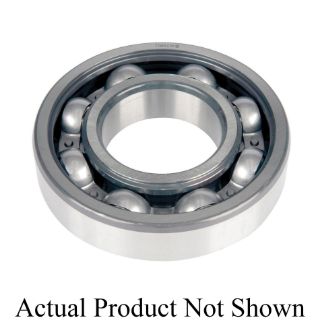

Picture of 6228-C3 TKN
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
6228-C3
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$2,022.18 / EA

Description

Brand Name

Timken®

Type

Light Straight Bore

Description

Timken® supplies a full range of product in the world's most popular design series. Timken® metric deep groove ball bearings deliver reliable performance in a wide range of applications and conditions.
Timken®, 6228-C3, ISO Deep Groove Radial Ball Bearing, Light Straight Bore, Series: 6200, 140 mm Bore, 250 mm OD, 1 Rows, 42 mm Width, Open Closure, 37318.284 lb Dynamic/33721.341 lb Static Load, Cold Rolled Steel Cage, 3400 rpm Grease/4900 rpm Oil Maximum, -50 to 120 deg C

Application

High Speed Electric Motor Applications

Standards

ATEX 94/9/EC | CE 93/68/EEC | Precision Class ABEC 1 | REACH EC 1907/2006 | RoHS 2011/65/EU | Section 1502 of the Dodd-Frank Wall Street Reform and Consumer Protection Act

Features

  • Super finished raceways
  • Quiet operation
  • ISO standard interchangeable dimensions
  • Electric motor quality (EMQ)

Specifications

Bearing Material:Steel
Bore Diameter:140 mm
Cage Material:Cold Rolled Steel
Closure Type:Open
Load Capacity:37318.284 lb Dynamic/33721.341 lb Static
Maximum Speed:3400 rpm Grease/4900 rpm Oil
Number of Rows:1
Outside Diameter:250 mm
Series:6200
Temperature Rating:-50 to 120 deg C
Width:42 mm
