62/32 2RS/C3 PRX BLT

Product Details

Manufacturer:
Manufacturer part number:
62/32 2RS/C3 PRX
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.

Description

Brand Name

TRITAN®

Description

Deep groove ball bearings incorporate grooved raceways on both the inner ring and outer ring, which enable them to sustain moderate axial loads in both directions in addition to radial loads. Balls are separated by steel cages, permitting high speed operation. Double row angular contact bearings are designed to accommodate combined simultaneous acting axial and radial loads. Balls are normally separated by high speed polyamide cages. Most bearings are prelubricated with Mobil Polyrex™ EM grease or Chevron SRI-2, which provides excellent lubrication up to 350 deg F. Sealed and shielded bearings are lubricated for life.

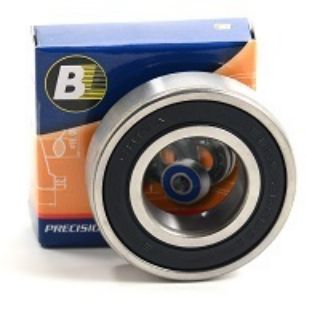

TRITAN® Radial Deep Groove Ball Bearing, 32 mm Bore, 65 mm OD, 1 Row, 17 mm Width, Double Seal Closure, 52100 Steel Bearing, Rubber Seal, Steel Cage, -20 to 212 deg F

Features

  • Standard bearings utilize high quality 52100 through hardened steel
  • Sealed bearings feature contact lip seals that provide excellent protection from liquids and contamination
  • However, seal rubbing can result in friction (drag) and produce heat, which could be a concern in high-speed applications

Specifications

Bearing Material:52100 Steel
Bore Diameter:32 mm
Cage Material:Steel
Closure Type:Double Seal
Number of Rows:1
Outside Diameter:65 mm
Seal Material:Rubber
Temperature Rating:-20 to 212 deg F
Width:17 mm
