Home / 62460-20L LEV

62460-20L LEV

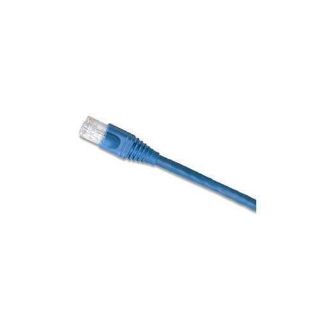

Picture of 62460-20L LEV
Actual Product May Vary From Image

Product Details

Manufacturer:
Leviton Manufacturing
Manufacturer part number:
62460-20L
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Leviton®

Type

Molded Standard

Description

Patch cords shall meet or exceed requirements for Cat 6 performance described in ANSI/TIA-568-C.2. Patch cords shall be stranded conductor with an 8-position modular plug on each end. The cords shall be available in standard lengths of 3, 5, 7, 10, 15 and 20 ft. Patch cord plug shall be clear and contacts shall have industry-standard, ANSI/TIA 1096-A compliant 50 micro in of gold plating.
Decora® Patch Cord, Standard, Category: Cat 6, 24 AWG Conductor, UTP Stranded Conductor, 8-Position Modular Connector, 20 ft Cord, Plastic, Blue

Application

Data Centers and Telecommunication Room Applications

Standards

ANSI/TIA-568-C.2 | IEC 11801-B | ANSI/TIA-1096-A | cULus Listed | UL 444 CM (No Suggestions) 802.3at (Type 1 and 2) | IEEE 802.3bt/D1.2 (Type 3) | IEEE 802.3bt/D1.2 (Type 4) | UL94 V-0 Flammability Rated

Features

  • Stranded conductor for longer flex life
  • T568B wiring to function in either T568A or T568B applications
  • Color matched cords and boots
  • TIA-1096-A compliant 50 u-in of gold plating

Specifications

Category Type:Cat 6
Color:Blue
Conductor Size:24 AWG
Conductor Type:UTP Stranded
Connector Type:8-Position Modular
Cord Length:20 ft
Country of Origin:CN
Jacket Material:Plastic
Temperature Rating:-20 to 60 deg C
