629-2RZ TKN

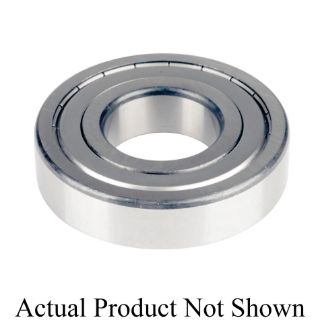

Picture of 629-2RZ TKN
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
629-2RZ
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$35.84 / EA

Description

Brand Name

Timken®

Type

Extra Small Straight Bore

Description

Timken® supplies a full range of product in the world's most popular design series. Timken® metric deep groove ball bearings deliver reliable performance in a wide range of applications and conditions.
Timken®, 629-2RZ, Miniature Deep Groove Radial Ball Bearing, Extra Small Straight Bore, Series: 600, 9 mm Bore, 26 mm OD, 1 Rows, 8 mm Width, Dual Non-Contact Seal Closure, 1034.12 lb Dynamic/449.618 lb Static Load, Nitrile Rubber Seal, Cold Rolled Steel Cage, 28000 rpm Grease/33000 rpm Oil Maximum, -40 to 120 deg C

Application

High Speed Electric Motor Applications

Standards

ATEX 94/9/EC | CE 93/68/EEC | Precision Class ABEC 1 | REACH EC 1907/2006 | RoHS 2011/65/EU | Section 1502 of the Dodd-Frank Wall Street Reform and Consumer Protection Act

Features

Super finished raceways

Specifications

Bearing Material:Steel
Bore Diameter:9 mm
Cage Material:Cold Rolled Steel
Closure Type:Dual Non-Contact Seal
Load Capacity:1034.12 lb Dynamic/449.618 lb Static
Maximum Speed:28000 rpm Grease/33000 rpm Oil
Number of Rows:1
Outside Diameter:26 mm
Seal Material:Nitrile Rubber
Series:600
Temperature Rating:-40 to 120 deg C
Width:8 mm
