Actual Product May Vary From Image

62C12 MSG

Name: 62C12 MSG
Brand: Martin Sprocket & Gear
SKU: 62C12 MSG
Price: 166.79 USD
Availability: OutOfStock

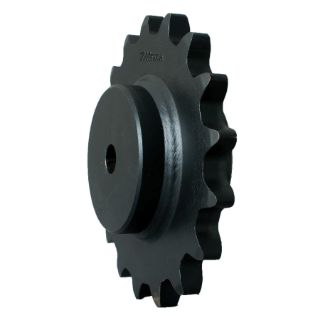

Martin Accu-Torch® 62C12 Type C Reboreable Flame Cut Sprocket, 15/16 to 2-3/8 in Dia Bore, 6.99 in OD, #62 Chain, 12 Teeth, 1.654 in Pitch, 6.391 in Dia Pitch, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 62C12

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$166.79

Qty:

Product Details

Brand Name

Martin

Type

Type C Reboreable

Description

Martin Accu-Torch® steel sprockets are available for virtually all engineering class chains in style A, B, and C. Also available as split with welded hub and split or solid detachable hub. They can also be furnished as shear pin type. Where possible please specify chain number, pitch diameter, number of teeth, bore and keyway size, and hub style required. Accu-Torch® sprockets are not intended to replace cut tooth roller chain sprockets.

Martin Accu-Torch® Flame Cut Sprocket, Type C Reboreable, 15/16 to 2-3/8 in Bore, 6.99 in OD, #62 Chain, 12 Teeth, 1.654 in Pitch, 6.391 in Pitch Diameter, 4-1/4 in Diameter Hub, 3-1/8 in Length Through Bore, Steel

Application

For engineering class and mill chains

Features

Precise machining and processes ensure consistent finish and high quality
Manufactured of high carbon steel

Specifications

Bore Diameter:	15/16 to 2-3/8 in
Chain Size:	#62
Hub Diameter:	4-1/4 in
Length Through Bore:	3-1/8 in
Material:	Steel
Number of Teeth:	12
Outside Diameter:	6.99 in
Pitch:	1.654 in
Pitch Diameter:	6.391 in
