62C24 MSG

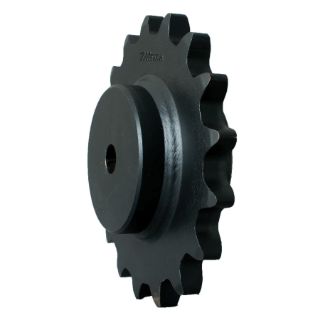

Martin Accu-Torch® 62C24 Type C Reboreable Flame Cut Sprocket, 1.25 to 3.313 in Dia Bore, 13.238 in OD, #62 Chain, 24 Teeth, 1.654 in Pitch, 12.671 in Dia Pitch, Steel
Manufacturer: Martin Sprocket & Gear
Manufacturer part number: 62C24
Availability: Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$464.77

Product Details

Brand Name

Martin

Type

Type C Reboreable

Description

Martin Accu-Torch® steel sprockets are available for virtually all engineering class chains in style A, B, and C. Also available as split with welded hub and split or solid detachable hub. They can also be furnished as shear pin type. Where possible please specify chain number, pitch diameter, number of teeth, bore and keyway size, and hub style required. Accu-Torch® sprockets are not intended to replace cut tooth roller chain sprockets.
Martin Accu-Torch® Flame Cut Sprocket, Type C Reboreable, 1.25 to 3.313 in Bore, 13.238 in OD, #62 Chain, 24 Teeth, 1.654 in Pitch, 12.671 in Pitch Diameter, 5-1/2 in Diameter Hub, 4-3/8 in Length Through Bore, Steel

Application

For engineering class and mill chains

Features

  • Precise machining and processes ensure consistent finish and high quality
  • Manufactured of high carbon steel

Specifications

Bore Diameter:1.25 to 3.313 in
Chain Size:#62
Hub Diameter:5-1/2 in
Length Through Bore:4-3/8 in
Material:Steel
Number of Teeth:24
Outside Diameter:13.238 in
Pitch:1.654 in
Pitch Diameter:12.671 in

Resources
