Actual Product May Vary From Image

63-18043 MEL

Name: 63-18043 MEL
Brand: Meltric
SKU: 63-18043 MEL
Price: 57.07 USD
Availability: InStock

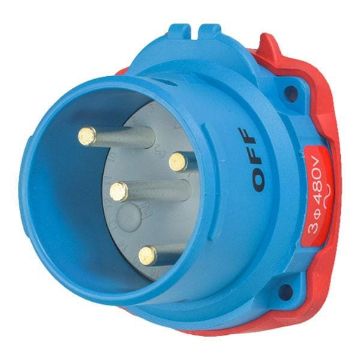

MELTRIC DECONTACTOR™ 63-18043 DSN20 Switch Rated Male Inlet With Ground, 255/277/440/480 VAC, 20 A, 3 Poles, 4 Wires, Blue

Manufacturer: Meltric

Manufacturer part number: 63-18043

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
6	2	4
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$57.07

Qty:

Product Details

Brand Name

MELTRIC

Type

Switch Rated

Description

DSN series products are switch and hp rated for quick, safe equipment change outs. DSN's are ideal for wet environments since they offer Type 4X water tightness as soon as the plug is latched to the receptacle or as soon as the receptacle lid is closed.

MELTRIC DECONTACTOR™ Male Inlet, Switch Rated, Series: DSN20, 255/277/440/480 VAC, 20 A, 5 hp, 60 Hz Frequency, 3 Pole, 4 Wires, NEMA 4X NEMA Rating, IP66/IP67/IP69K Enclosure, -40 to 140 deg F, Screw Terminal, Polyester, Blue, 2.36 in H x 2.2 in W x 2.46 in D Dimensions

Application

Wet or Washdown Environments, Plug and Play Electrical Connections

Standards

Features

Switch and hp rated (AC only)
100 kA short circuit rated
Compact, lightweight design
Up to 4 auxiliary contacts
Fiberglass reinforced thermoplastic polyester material offers great resistance to impact, corrosion and harsh environmental conditions
Solid silver nickel contact surfaces provide superior conductivity, durability and corrosion resistance
1/2 hp at 120 VAC, 1-1/2 hp at 240 VAC 1-phase, 2 hp at 208/240 VAC, 5 hp at 480/600 VAC 3-phase horsepower rating

Specifications

Amperage Rating:	20 A
Color:	Blue
Country of Origin:	US
Dimensions:	2.36 in H x 2.2 in W x 2.46 in D
Enclosure:	IP66/IP67/IP69K
Frequency Rating:	60 Hz
Horsepower:	5 hp
Material:	Polyester
NEMA Rating:	NEMA 4X
Number of Poles:	3
Number of Wires:	4
Series:	DSN20
Temperature Rating:	-40 to 140 deg F
Terminal Type:	Screw
Voltage Rating:	255/277/440/480 VAC

Resources
