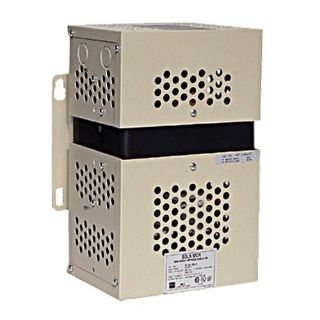

Actual Product May Vary From Image

63-23-250-8 SHD

Name: 63-23-250-8 SHD
Brand: SolaHD (Emerson)
SKU: 63-23-250-8 SHD
Price: 6,861.60 USD
Availability: InStock

5000VA MCR HARDWIRE REGULATOR

Manufacturer: SolaHD (Emerson)

Manufacturer part number: 63-23-250-8

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
1	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$6,861.60

Qty:

Product Details

Brand Name

SolaHD

Type

MCR Hardwired Series Power Line Conditioning with Voltage Regulation

Description

Features:120 DB Common Mode, 60 DB Transverse Mode Noise Attenuation, Galvanic Isolation, Standard:UL (CANADA AND US) , UL 1012, CSA, ANSI/IEEE C62.41, Wattage:5000VA, Input Voltage: 120/208/240/480, Output Voltage: 120/208/240

Application

Industrial Automation and Control Equipment Power PLCs, Machine Tools, Robotics, Semiconductor Fabrication Equipment

Standards

UL, UL 1012, CSA, CE, ANSI/IEEE C62.41

Features

+/- 3% output voltage regulation, Surge protection tested to ANSI/IEEE C62.41. Class A & B waveform, Harmonic filtering, Galvanic isolation, Noise attenuation 120 dB common mode/60 dB transverse mode

Specifications

Country of Origin:	US
Frequency Rating:	60 Hz
Height:	19 in
Input:	120, 208, 240, 480
Length:	9 in
Mounting:	Bracket
Noise Level:	35 to 65 dBA
Output Power:	120/208/240
Phase:	1
Primary Voltage:	120/208/240/480
Regulation:	+/-3
Secondary Voltage:	120/208/240
Style:	1
Wattage:	5000
Width:	13 in

Resources

MSDS Spec Sheet Warranty
