63-34042-843 MEL

Name: 63-34042-843 MEL
Brand: Meltric
SKU: 63-34042-843 MEL
Price: 260.51 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Meltric

Manufacturer part number:

63-34042-843

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$260.51 / EA

Description

Brand Name

MELTRIC

Type

Female

Description

DSN Series products are switch and hp rated for quick, safe equipment changeouts. DSN's are ideal for wet environments since they offer Type 4X watertightness as soon as the plug is latched to the receptacle or as soon as the receptacle lid is closed.

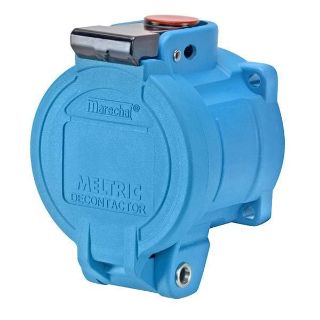

MELTRIC DECONTACTOR™ Switch Rated Receptacle, Female, Series: DSN30, 255/277/440/480 VAC, 30 A, 10 hp, 60 Hz Frequency, 2 Poles, 3 Wires, NEMA 4X, IP66/IP67/IP69K Enclosure, -40 to 140 deg F, Screw Terminal, PBT, Blue, 3.81 in H x 3.42 in D Dimensions

Application

Industrial, Wet/Washdown Environments, Plug and Play Electrical Connections

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant | UL 2682 | UL 1682 | CSA C22.2 No. 182.1 | IEC 60309-1

Features

Spring assisted screw terminals
Spring loaded butt style contacts
Lid provides additional protection from harsh environments
OFF button press to deenergize, provides push button circuit disconnection
Dead front/safety shutter
Fiberglass reinforced thermoplastic polyester material offers great resistance to impact, corrosion and harsh environmental conditions
10 hp at 480 VAC 3-phase horsepower rating

Specifications

Amperage Rating:	30 A
Color:	Blue
Country of Origin:	US
Dimensions:	3.81 in H x 3.42 in D
Enclosure:	IP66/IP67/IP69K
Frequency Rating:	60 Hz
Horsepower:	10 hp
Material:	PBT
NEMA Rating:	NEMA 4X
Number of Poles:	2
Number of Wires:	3
Series:	DSN30
Temperature Rating:	-40 to 140 deg F
Terminal Type:	Screw
Voltage Rating:	255/277/440/480 VAC
