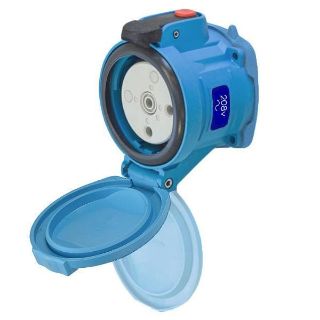

Picture of 63-34162 MEL
Actual Product May Vary From Image

63-34162 MEL

MELTRIC DECONTACTOR™ 63-34162 DSN30 Switch Rated Female Receptacle With Ground, 120/127/208/220 VAC, 30 A, 2 Poles, 3 Wires, Blue
Manufacturer: Meltric
Manufacturer part number: 63-34162
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
2 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$246.32

Product Details

Brand Name

MELTRIC

Type

Switch Rated

Description

DSN series products are switch and hp rated for quick, safe equipment change outs. DSN's are ideal for wet environments since they offer Type 4X water tightness as soon as the plug is latched to the receptacle or as soon as the receptacle lid is closed.
MELTRIC DECONTACTOR™ Female Receptacle, Switch Rated, Series: DSN30, 120/127/208/220 VAC, 30 A, 1 hp, 5 hp, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 4X NEMA Rating, IP66/IP67/IP69K Enclosure, -40 to 140 deg F, Screw Terminal, Polyester, Blue, 2.87 in Dia x 3.2 in L Dimensions

Application

Wet or Washdown Environments, Plug and Play Electrical Connections

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant | UL 2682/1682 | CSA 182.1 | CE Certified | NOM Certified | IEC Certified | NFPA 70E

Features

  • Switch and hp rated (AC only)
  • 100 kA short circuit rated
  • Compact, lightweight design
  • Up to 4 auxiliary contacts
  • Spring assisted screw terminals patented design assures ''tighten and forget'' confidence
  • Spring loaded butt-style contacts ensures optimal contact force and superior electrical performance over thousands of operations
  • Lid provides additional protection from harsh environments
  • OFF button press to de-energize and provides push button circuit disconnection
  • Dead front/safety shutter assures safety by preventing user access to live parts
  • 1 hp at 120 VAC, 3 hp at 240 VAC 1-phase, 5 hp at 208/240 VAC, 10 hp at 480 VAC, 15 hp at 600 VAC 3-phase horsepower rating

Specifications

Amperage Rating:30 A
Color:Blue
Country of Origin:US
Dimensions:2.87 in Dia x 3.2 in L
Enclosure:IP66/IP67/IP69K
Frequency Rating:60 Hz
Horsepower:1 hp, 5 hp
Material:Polyester
NEMA Rating:NEMA 4X
Number of Poles:2
Number of Wires:3
Series:DSN30
Temperature Rating:-40 to 140 deg F
Terminal Type:Screw
Voltage Rating:120/127/208/220 VAC
