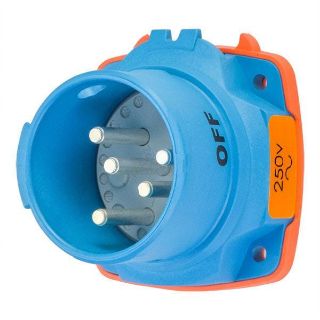

Picture of 63-38072-972 MEL
Actual Product May Vary From Image

63-38072-972 MEL

MELTRIC DECONTACTOR™ 63-38072-972 DSN Male Switch Rated Inlet With (2) Auxiliary Pilot Contacts, 110/125/220/250 VAC, 30 A, 2 Poles, 3 Wires, Blue
Manufacturer: Meltric
Manufacturer part number: 63-38072-972
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
1 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$135.40

Product Details

Brand Name

MELTRIC

Type

Male

Description

DSN Series products are switch and hp rated for quick, safe equipment changeouts. DSN's are ideal for wet environments since they offer Type 4X watertightness as soon as the plug is latched to the receptacle or as soon as the receptacle lid is closed.
MELTRIC DECONTACTOR™ Switch Rated Inlet, Male, Series: DSN, 110/125/220/250 VAC, 30 A, 1 hp, 3 hp, 5 hp, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 4X, IP69K Enclosure, -40 to 140 deg F, Screw Terminal, PBT, Blue, 2.56 in D Dimensions

Application

Industrial, Wet/Washdown Environments, Plug and Play Electrical Connections

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant | UL 2682 | UL 1682 | CSA C22.2 No. 182.1

Features

  • Compact and lightweight design
  • Automatic type 4X/IP69k watertightness
  • Solid silver nickel contact surfaces provide superior conductivity, lid durability and corrosion resistance
  • Fiberglass reinforced thermoplastic polyester material offers great resistance to impact, corrosion and harsh environmental conditions
  • Spring assisted screw terminal patented design assures "Tighten and Forget" confidence
  • Lockout tagout provisions allows plug to be easily locked out and tagged
  • 1 hp at 120 VAC, 3 hp at 240 VAC 1-phase, 5 hp at 208/240 VAC 3-phase horsepower rating

Specifications

Amperage Rating:30 A
Color:Blue
Country of Origin:US
Dimensions:2.56 in D
Enclosure:IP69K
Frequency Rating:60 Hz
Horsepower:1 hp, 3 hp, 5 hp
Material:PBT
NEMA Rating:NEMA 4X
Number of Poles:2
Number of Wires:3
Series:DSN
Temperature Rating:-40 to 140 deg F
Terminal Type:Screw
Voltage Rating:110/125/220/250 VAC
