6302-C3 FAG

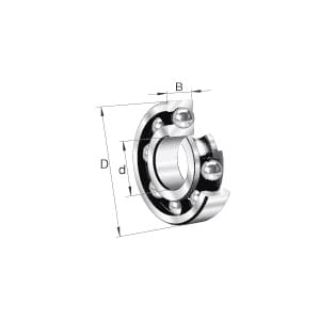

Picture of 6302-C3 FAG
Actual Product May Vary From Image

Product Details

Manufacturer:
INA
Manufacturer part number:
6302-C3
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

FAG

Description

FAG Deep Groove Ball Bearing, Series: 63 Series, 15 mm Bore Dia, 42 mm Outside Dia, 1 Row, 13 mm W, Open Closure, 12000 N Dynamic/5300 N Static/270 N Fatigue, Steel Bearing, Steel Cage, 25000 rpm Maximum, 120 deg C, Uncoated

Standards

Meets to DIN 625-1

Features

C3 radial internal clearance

Specifications

Bearing Material:Steel
Bore Diameter:15 mm
Cage Material:Steel
Closure Type:Open
Finish:Uncoated
Load Capacity:12000 N Dynamic/5300 N Static/270 N Fatigue
Maximum Speed:25000 rpm
Number of Rows:1
Outside Diameter:42 mm
Series:63 Series
Temperature Rating:120 deg C
Width:13 mm

Products Specifications

Bore Size
15 mm
Brand Name
FAG
Measuring Units
Metric
Outside Diameter
42 mm
Width
13 mm
