6309-2RSR-L038-C3 FAG

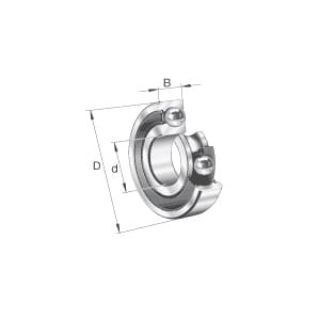

Picture of 6309-2RSR-L038-C3 FAG
Actual Product May Vary From Image

Product Details

Manufacturer:
INA
Manufacturer part number:
6309-2RSR-L038-C3
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$126.86 / EA

Description

Brand Name

FAG

Description

FAG Deep Groove Ball Bearing, Series: 63..-2RSR, 45 mm Bore, 100 mm OD, 1 Rows, 25 mm Width, Double Seal Closure, 56000 N Dynamic/31500 N Static/2180 N Fatigue Load, Steel Bearing, Buna-N Seal, Steel Cage, 4300 rpm Maximum, -30 to 110 deg C, Uncoated

Standards

Meets to DIN 625-1

Features

  • Lip seals on both sides
  • C3 radial internal clearance

Specifications

Bearing Material:Steel
Bore Diameter:45 mm
Cage Material:Steel
Closure Type:Double Seal
Finish:Uncoated
Load Capacity:56000 N Dynamic/31500 N Static/2180 N Fatigue
Maximum Speed:4300 rpm
Number of Rows:1
Outside Diameter:100 mm
Seal Material:Buna-N
Series:63..-2RSR
Temperature Rating:-30 to 110 deg C
Width:25 mm
