6312-2Z-N FAG

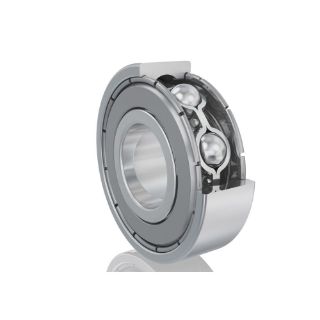

Picture of 6312-2Z-N FAG
Actual Product May Vary From Image

Product Details

Manufacturer:
INA
Manufacturer part number:
6312-2Z-N
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$347.68 / EA

Description

Brand Name

FAG

Type

Standard

Description

Deep groove ball bearings are versatile, self-retaining bearings with solid outer rings, inner rings and ball and cage assemblies. These bearings with their simple design, high resistance and low-maintenance, are available in single-row and double-row designs, as well as sealed and unsealed. Due to the manufacturing processes used, open bearings can have turned recesses in the outer ring for seals or shields.
FAG Deep Groove Ball Bearing, Standard, Series: Medium Series, 60 mm Bore, 130 mm OD, 1 Rows, 31 mm Width, Double Shield Closure, 89000 N Load, Steel Bearing, Rubber Seal, Sheet Steel Cage, 6700 rpm Grease/6700 rpm Oil Maximum, -30 to 150 deg C

Application

For compensating static angular misalignments to a very limited extent

Features

  • Bearing arrangement must be operated with very low friction
  • High demands are made on the sealing of the bearing, without increasing heat generation
  • Bearing position is to be designed particularly economically
  • Non-contact sealing shield on both sides
  • 89000 N dynamic/52000 N static

Specifications

Bearing Material:Steel
Bore Diameter:60 mm
Cage Material:Sheet Steel
Closure Type:Double Shield
Country of Origin:US
Load Capacity:89000 N
Maximum Speed:6700 rpm Grease/6700 rpm Oil
Number of Rows:1
Outside Diameter:130 mm
Seal Material:Rubber
Series:Medium Series
Temperature Rating:-30 to 150 deg C
Width:31 mm

Products Specifications

Brand Name
FAG Bearings
