6312-Z-C4 FAG

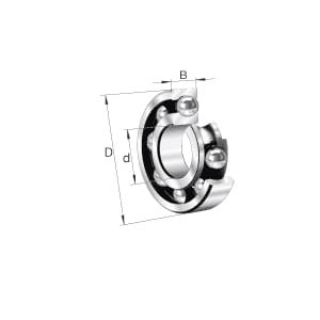

Picture of 6312-Z-C4 FAG
Actual Product May Vary From Image

Product Details

Manufacturer:
INA
Manufacturer part number:
6312-Z-C4
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

FAG

Description

FAG Deep Groove Ball Bearing, Series: 63 Series, 60 mm Bore, 130 mm OD, 1 Rows, 31 mm Width, Single Shield Closure, 89000 N Dynamic/52000 N Static/3500 N Fatigue Load, Steel Bearing, Metal Seal, Steel Cage, 7900 rpm Maximum, -30 to 120 deg C

Standards

Meets to DIN 625-1

Features

  • Gap seal on one side
  • C4 radial internal clearance

Specifications

Bearing Material:Steel
Bore Diameter:60 mm
Cage Material:Steel
Closure Type:Single Shield
Load Capacity:89000 N Dynamic/52000 N Static/3500 N Fatigue
Maximum Speed:7900 rpm
Number of Rows:1
Outside Diameter:130 mm
Seal Material:Metal
Series:63 Series
Temperature Rating:-30 to 120 deg C
Width:31 mm

Products Specifications

Brand Name
FAG Bearings
