6312 ZZNR NAC

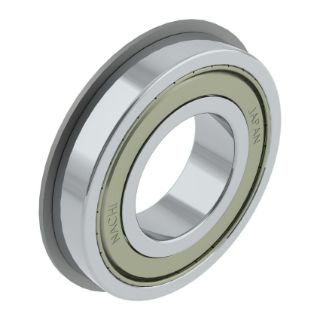

Picture of 6312 ZZNR NAC
Actual Product May Vary From Image

Product Details

Manufacturer:
Nachi Bearings
Manufacturer part number:
6312ZZENR
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$227.05 / EA

Description

Brand Name

NACHI

Description

Because of their versatility, Single-row, Deep-groove Ball Bearings are the most popular of all the ball bearing types. NACHI Deep-groove Ball Bearings are available in a wide range of series defined by the JIS (ISO) standard dimension plan and are also made to meet specialized dimension and configuration requirements.
NACHI Deep Groove Radial Ball Bearing, Series: 6300, 60 mm Bore, 130 mm OD, 1 Row, 31 mm Width, Double Seal Closure, 82000 N Dynamic/52000 N Static Load, Steel Bearing, Pressed Steel Cage, 5400 rpm Grease Maximum, 250 deg F

Application

Electric Motors, Automotive Alternators, Automotive Starters, Compressors, Blowers and Transmissions Applications

Standards

ECCN: EAR99 | JIS ABEC Grade 1

Features

  • Deep groove ball bearings are the most popular of all the ball bearing types because they are available in a wide variety of seal, shield and snap-ring arrangements
  • The bearing ring grooves are circular arcs made slightly larger than the radius of the ball
  • The balls make point contact with the raceways (elliptical contact when loaded)
  • The inner ring shoulders are of equal height (as the outer ring shoulders)
  • Deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high running accuracy and high speed operation
  • Adopted NACHI original seal design to prevent contamination and grease leakage
  • Contains special grease for wider temperature ranges and longer life
  • The precision level of our bearing components has been enhanced to ensure smooth and quiet operation
  • Lower rotating torque by improving seal lips

Specifications

Bearing Material:Steel
Bore Diameter:60 mm
Cage Material:Pressed Steel
Closure Type:Double Seal
Country of Origin:JP
Load Capacity:82000 N Dynamic/52000 N Static
Maximum Speed:5400 rpm Grease
Number of Rows:1
Outside Diameter:130 mm
Series:6300
Temperature Rating:250 deg F
Width:31 mm

Products Specifications

Brand Name
Nachi

Customers who bought this item also bought

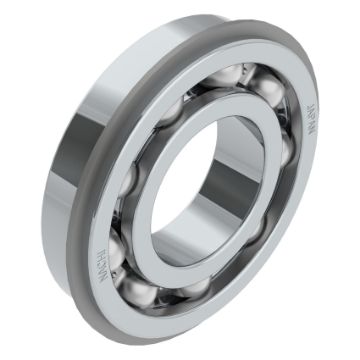

Picture of 6208 NR NAC
