6314-C4 FAG

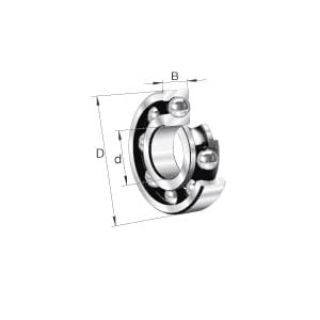

Picture of 6314-C4 FAG
Actual Product May Vary From Image

Product Details

Manufacturer:
INA
Manufacturer part number:
6314-C4
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$343.32 / EA

Description

Brand Name

FAG

Description

FAG Deep Groove Ball Bearing, Series: 63 Series, 70 mm Bore Dia, 150 mm Outside Dia, 1 Row, 35 mm W, Open Closure, 115000 N Dynamic/69000 N Static/4450 N Fatigue, Steel Bearing, Steel Cage, 6800 rpm Maximum, 120 deg C, Uncoated

Standards

Meets to DIN 625-1

Features

C4 radial internal clearance

Specifications

Bearing Material:Steel
Bore Diameter:70 mm
Cage Material:Steel
Closure Type:Open
Finish:Uncoated
Load Capacity:115000 N Dynamic/69000 N Static/4450 N Fatigue
Maximum Speed:6800 rpm
Number of Rows:1
Outside Diameter:150 mm
Series:63 Series
Temperature Rating:120 deg C
Width:35 mm

Products Specifications

Bore Size
70 mm
Brand Name
FAG
Measuring Units
Metric
Outside Diameter
150 mm
Width
35 mm
