6315-2Z-S1-C4 FAG

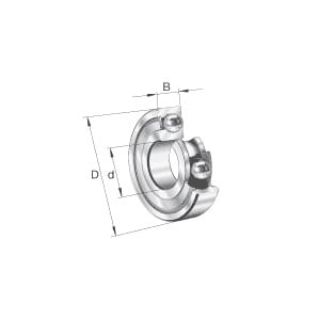

Picture of 6315-2Z-S1-C4 FAG
Actual Product May Vary From Image

Product Details

Manufacturer:
INA
Manufacturer part number:
6315-2Z-S1-C4
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$457.77 / EA

Description

Brand Name

FAG

Description

FAG Deep Groove Ball Bearing, Series: 63..-2Z, 75 mm Bore, 160 mm OD, 1 Rows, 37 mm Width, Double Shield Closure, 123000 N Dynamic/77000 N Static/4750 N Fatigue Load, Metal Seal, Steel Cage, 5400 rpm Maximum, -30 to 120 deg C

Standards

Meets to DIN 625-1

Features

  • Gap seal on both sides
  • C4 radial internal clearance

Specifications

Bore Diameter:75 mm
Cage Material:Steel
Closure Type:Double Shield
Load Capacity:123000 N Dynamic/77000 N Static/4750 N Fatigue
Maximum Speed:5400 rpm
Number of Rows:1
Outside Diameter:160 mm
Seal Material:Metal
Series:63..-2Z
Temperature Rating:-30 to 120 deg C
Width:37 mm

Products Specifications

Brand Name
FAG Bearings
