6315-RS-C3 TKN

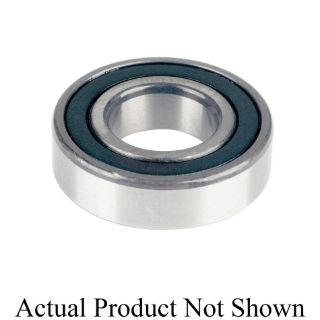

Picture of 6315-RS-C3 TKN
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
6315-RS-C3
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$670.96 / EA

Description

Brand Name

Timken®

Type

Medium Standard Straight Bore

Description

Timken® supplies a full range of product in the world's most popular design series. Timken® metric deep groove ball bearings deliver reliable performance in a wide range of applications and conditions.
Timken®, 6315-RS-C3, ISO Deep Groove Radial Ball Bearing, Medium Standard Straight Bore, Series: 6300, 75 mm Bore, 160 mm OD, 1 Rows, 37 mm Width, Single Contact Seal Closure, 25493 lb Dynamic/17198 lb Static Load, Nitrile Rubber Seal, Cold Rolled Steel Cage, 5400 rpm Grease/7800 rpm Oil Maximum, -40 to 120 deg C

Application

High Speed Electric Motor Applications

Standards

ATEX 94/9/EC | CE 93/68/EEC | Precision Class ABEC 1 | REACH EC 1907/2006 | RoHS 2011/65/EU | Section 1502 of the Dodd-Frank Wall Street Reform and Consumer Protection Act

Features

  • Super finished raceways
  • Quiet operation
  • ISO standard interchangeable dimensions
  • Electric motor quality (EMQ)
  • Contact seals offer superior lubricant retention and bearing protection from contaminants

Specifications

Bearing Material:Steel
Bore Diameter:75 mm
Cage Material:Cold Rolled Steel
Closure Type:Single Contact Seal
Load Capacity:25493 lb Dynamic/17198 lb Static
Maximum Speed:5400 rpm Grease/7800 rpm Oil
Number of Rows:1
Outside Diameter:160 mm
Seal Material:Nitrile Rubber
Series:6300
Temperature Rating:-40 to 120 deg C
Width:37 mm
