6316 FAG

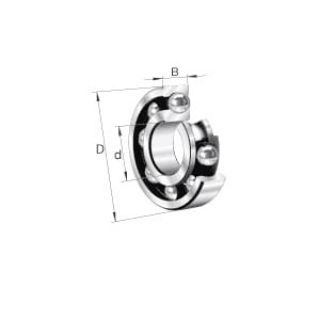

Picture of 6316 FAG
Actual Product May Vary From Image

Product Details

Manufacturer:
INA
Manufacturer part number:
6316
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$502.06 / EA

Description

Brand Name

FAG

Description

FAG Deep Groove Ball Bearing, Series: 63 Series, 80 mm Bore Dia, 170 mm Outside Dia, 1 Row, 39 mm W, Open Closure, 131000 N Dynamic/87000 N Static/5200 N Fatigue, Steel Bearing, Steel Cage, 5400 rpm Maximum, 120 deg C

Standards

Meets to DIN 625-1

Specifications

Bearing Material:Steel
Bore Diameter:80 mm
Cage Material:Steel
Closure Type:Open
Load Capacity:131000 N Dynamic/87000 N Static/5200 N Fatigue
Maximum Speed:5400 rpm
Number of Rows:1
Outside Diameter:170 mm
Series:63 Series
Temperature Rating:120 deg C
Width:39 mm

Products Specifications

Bore Size
80 mm
Brand Name
FAG
Measuring Units
Metric
Outside Diameter
170 mm
Width
39 mm
