6320-2Z-C3 FAG

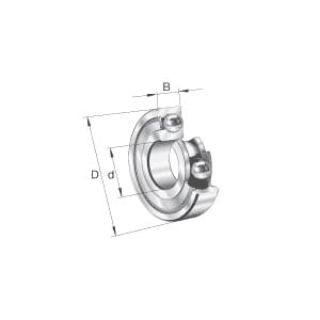

Picture of 6320-2Z-C3 FAG
Actual Product May Vary From Image

Product Details

Manufacturer:
INA
Manufacturer part number:
6320-2Z-C3
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$994.26 / EA

Description

Brand Name

FAG

Description

FAG Deep Groove Ball Bearing, Series: 63..-2Z, 100 mm Bore, 215 mm OD, 1 Rows, 47 mm Width, Double Shield Closure, 177000 N Dynamic/137000 N Static/7100 N Fatigue Load, Steel Bearing, Metal Seal, Steel Cage, 3600 rpm Maximum, -30 to 120 deg C, Uncoated

Standards

Meets to DIN 625-1

Features

  • Gap seal on both sides
  • C3 radial internal clearance

Specifications

Bearing Material:Steel
Bore Diameter:100 mm
Cage Material:Steel
Closure Type:Double Shield
Finish:Uncoated
Load Capacity:177000 N Dynamic/137000 N Static/7100 N Fatigue
Maximum Speed:3600 rpm
Number of Rows:1
Outside Diameter:215 mm
Seal Material:Metal
Series:63..-2Z
Temperature Rating:-30 to 120 deg C
Width:47 mm

Products Specifications

Brand Name
FAG Bearings
