6324-C4 FAG

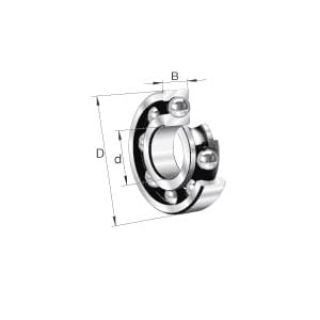

Picture of 6324-C4 FAG
Actual Product May Vary From Image

Product Details

Manufacturer:
INA
Manufacturer part number:
6324-C4
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,681.64 / EA

Description

Brand Name

FAG

Description

FAG Deep Groove Ball Bearing, Series: 63 Series, 120 mm Bore Dia, 260 mm Outside Dia, 1 Row, 55 mm W, Open Closure, 225000 N Dynamic/195000 N Static/9500 N Fatigue, Steel Cage, 3500 rpm Maximum, 200 deg C, Uncoated

Standards

Meets to DIN 625-1

Features

C4 radial internal clearance

Specifications

Bore Diameter:120 mm
Cage Material:Steel
Closure Type:Open
Finish:Uncoated
Load Capacity:225000 N Dynamic/195000 N Static/9500 N Fatigue
Maximum Speed:3500 rpm
Number of Rows:1
Outside Diameter:260 mm
Series:63 Series
Temperature Rating:200 deg C
Width:55 mm

Products Specifications

Bore Size
120 mm
Brand Name
FAG
Measuring Units
Metric
Outside Diameter
260 mm
Width
55 mm
