6326-M-J20AA-C5 FAG

Name: 6326-M-J20AA-C5 FAG
Brand: INA
SKU: 6326-M-J20AA-C5 FAG
Price: 4,676.46 USD
Availability: OutOfStock

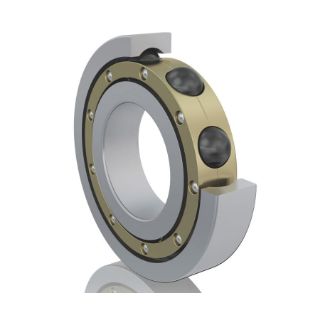

Actual Product May Vary From Image

Product Details

Manufacturer:

INA

Manufacturer part number:

6326-M-J20AA-C5

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$4,676.46 / EA

Description

Brand Name

FAG

Type

Standard

Description

Deep groove ball bearings are versatile, self-retaining bearings with solid outer rings, inner rings and ball and cage assemblies. These bearings with their simple design, high resistance and low-maintenance, are available in single-row and double-row designs, as well as sealed and unsealed. Due to the manufacturing processes used, open bearings can have turned recesses in the outer ring for seals or shields.

FAG Deep Groove Ball Bearing, Standard, Series: Medium Series, 130 mm Bore, 280 mm OD, 1 Rows, 58 mm Width, Open Closure, Brass Cage, 4150 rpm Maximum, -30 to 200 deg C

Application

For compensating static angular misalignments to a very limited extent

Features

Bearing arrangement must be operated with very low friction
High demands are made on the sealing of the bearing, without increasing heat generation
Bearing position is to be designed particularly economically
Ball-guided solid brass cage

Specifications

Bore Diameter:	130 mm
Cage Material:	Brass
Closure Type:	Open
Country of Origin:	US
Maximum Speed:	4150 rpm
Number of Rows:	1
Outside Diameter:	280 mm
Series:	Medium Series
Temperature Rating:	-30 to 200 deg C
Width:	58 mm
