Home / 6326M-C3 TKN

6326M-C3 TKN

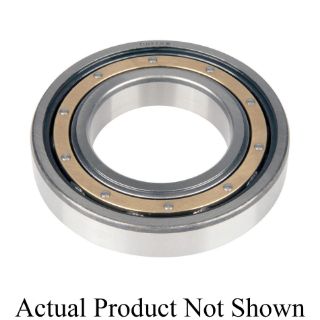

Picture of 6326M-C3 TKN
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
6326M-C3
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$3,979.67 / EA

Description

Brand Name

Timken®

Type

Medium Standard Straight Bore

Description

Timken® supplies a full range of product in the world's most popular design series. Timken® metric deep groove ball bearings deliver reliable performance in a wide range of applications and conditions.
Timken®, 6326M-C3, ISO Deep Groove Radial Ball Bearing, Medium Standard Straight Bore, Series: 6300, 130 mm Bore, 280 mm OD, 1 Rows, 58 mm Width, Open Closure, 56404.564 lb Dynamic/53661.895 lb Static Load, Steel Bearing, Machined Brass Cage, 3300 rpm Grease/4600 rpm Oil Maximum, -50 to 120 deg C

Application

High Speed Electric Motor Applications

Standards

ATEX 94/9/EC | CE 93/68/EEC | Precision Class ABEC 1 | REACH EC 1907/2006 | RoHS 2011/65/EU | Section 1502 of the Dodd-Frank Wall Street Reform and Consumer Protection Act

Features

  • Super finished raceways
  • Quiet operation
  • ISO standard interchangeable dimensions
  • Electric motor quality (EMQ)
  • Brass cage for extreme shock loads, high vibration and high forces due to acceleration

Specifications

Bearing Material:Steel
Bore Diameter:130 mm
Cage Material:Machined Brass
Closure Type:Open
Load Capacity:56404.564 lb Dynamic/53661.895 lb Static
Maximum Speed:3300 rpm Grease/4600 rpm Oil
Number of Rows:1
Outside Diameter:280 mm
Series:6300
Temperature Rating:-50 to 120 deg C
Width:58 mm
