634-2Z FAG

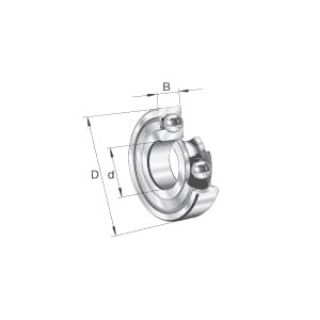

Picture of 634-2Z FAG
Actual Product May Vary From Image

Product Details

Manufacturer:
INA
Manufacturer part number:
634-2Z
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

FAG

Description

FAG Deep Groove Ball Bearing, Series: 63..-2Z, 4 mm Bore, 16 mm OD, 1 Rows, 5 mm Width, Double Shield Closure, 1840 N Dynamic/670 N Static/40,5 N Fatigue Load, Metal Seal, Steel Cage, 53000 rpm Maximum, -30 to 120 deg C

Standards

Meets to DIN 625-1

Features

Gap seal on both sides

Specifications

Bore Diameter:4 mm
Cage Material:Steel
Closure Type:Double Shield
Load Capacity:1840 N Dynamic/670 N Static/40,5 N Fatigue
Maximum Speed:53000 rpm
Number of Rows:1
Outside Diameter:16 mm
Seal Material:Metal
Series:63..-2Z
Temperature Rating:-30 to 120 deg C
Width:5 mm
