63D33 BSF

Name: 63D33 BSF
Brand: Bussmann
SKU: 63D33 BSF
Price: 51.61 USD
Availability: OutOfStock

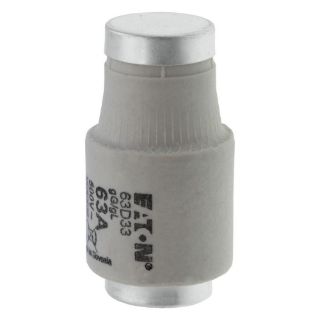

Actual Product May Vary From Image

Product Details

Manufacturer:

Bussmann

Manufacturer part number:

63D33

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 71 days

Estimated dates are contingent upon manufacturer stock.

$51.61 / EA

Description

Brand Name

Bussmann

Type

Low Voltage Non-Indicating Time Delay

Description

Bussmann range of type D diazed and do neozed fuse links is specifically designed for the protection of general industrial applications such as power distribution and cable protection. Both types D diazed and do neozed are available in three operating characteristics: time delay, fast acting and ultra rapid versions that fit into screw cap fuse link carriers for mounting in 1 or 3-pole DIN rail or panel mount.

Bussmann D Fuse Link, Low Voltage Non-Indicating Time Delay, Series: D33, 500 V, 63 A, Rated Breaking Capacity: 100 kA, Holder Mounting, For Use With: E33/DIII Size Screw Cap, Class C gG/gL Fuse, Ceramic, Copper, 27.5 mm Dia x 50 mm L Dimensions

Application

Aftermarket, Control Panels for Machines, Panel Builders, OEMs, Electrical Assemblies, Panels, For the protection of general industrial applications such as power distribution and control and cable protection, stationary machine equipment in factory - robotics

Standards

Features

Characteristics to suit the protection needs of inductive and resistive loads
Fast trouble shooting with easily visible fuse operated pin indicator

Specifications

Amperage Rating:	63 A
Color:	Copper
Country of Origin:	SI
Dimensions:	27.5 mm Dia x 50 mm L
Material:	Ceramic
Mounting Type:	Holder
Rated Breaking Capacity:	100 kA
Series:	D33
Suitable For Use With:	E33 Base
Voltage Rating:	500 V

Resources

Video
