63SPX2K2005 APN

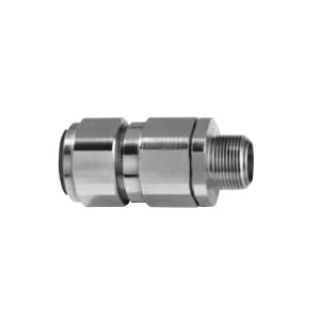

Picture of 63SPX2K2005 APN
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
63SPX2K2005
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$2,937.10 / EA

Description

Brand Name

Appleton®

Type

Straight

Description

Appleton® PX2K Series Nickel Plated Brass Cable Glands are suitable for all types of armored cables (braid, tape, wire and lead sheath version) certified for enclosures with the following protection modes: Ex d flameproof IIB or IIC (as per 10.4.2 of IEC 60079-14), Ex e increased safety, Ex nR restricted breathing and D dust environment. They are ideal for onshore and offshore use and for other hazardous areas exposed to gases and dust.
Appleton® Cable Gland Connector, Straight, Series: PX2K, 2 in Trade, Cable Openings: 1.8 to 2.34 in, Braid/Jacketed Marine Shipboard/Lead Sheath Armored/Tape/Wire Cable, NPT Connection, Brass, Nickel Plated, -60 to 130 deg C, 3.25 in Dia x 3.6 in L Dimensions

Application

For all types of armored cables (braid, tape, wire and lead sheath version)

Standards

UL 2225, E161256, E201187 | CSA 101909, C22.2 No. 174 Certified | Class I, Division 1 and 2, Groups A, B, C, D Class II, Division 1 and 2, Groups E, F, G, Class III, Zones 1 and 2, Gas-ATEX, IEC Protection: Ex d IIC, Ex e II, Ex nR II, Zones 21 and 22, Dust- ATEX, IEC Protection: Ex tD A21, LLOYDS, DNV, ABS, IECEx SIR 13.0027X Certified | SIRA13ATEX1072X, SIRA13ATEX4078X

Features

  • Cable gland with compound barrier seal for use in hazardous areas with all types of armored cables (braid, tape and wire)
  • The cable gland provides mechanical cable retention and earth continuity via cable armor termination
  • A combined detachable armor cone and compound tube, together with AnyWay universal clamping ring arrangement allows the cable to be easily disconnected from the equipment
  • The cable gland is IP66/68 and complies with deluge protection tests
  • The cable gland is supplied with epoxy resin and two detachable armor cones

Specifications

Cable Openings:1.8 to 2.34 in
Cable Type:Braid/Jacketed Marine Shipboard/Lead Sheath Armored/Tape/Wire
Connection Type:NPT
Country of Origin:GB
Dimensions:3.25 in Dia x 3.6 in L
Finish:Nickel Plated
Material:Brass
Series:PX2K
Temperature Rating:-60 to 130 deg C
Trade Size:2 in
