6405-A-C3 FAG

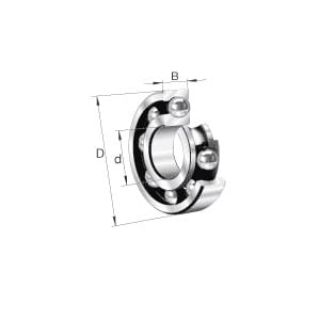

Picture of 6405-A-C3 FAG
Actual Product May Vary From Image

Product Details

Manufacturer:
INA
Manufacturer part number:
6405-A-C3
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$115.60 / EA

Description

Brand Name

FAG

Description

FAG Deep Groove Ball Bearing, Series: 64 Series, 25 mm Bore Dia, 80 mm Outside Dia, 1 Row, 21 mm W, Open Closure, 35500 N Dynamic/19100 N Static/1250 N Fatigue, Steel Bearing, Steel Cage, 12300 rpm Maximum, 120 deg C, Uncoated

Application

Textiles, Power Tools, Electric Motors, Pumps and Gearboxes

Standards

Meets to DIN 625-1

Features

C3 radial internal clearance

Specifications

Bearing Material:Steel
Bore Diameter:25 mm
Cage Material:Steel
Closure Type:Open
Finish:Uncoated
Load Capacity:35500 N Dynamic/19100 N Static/1250 N Fatigue
Maximum Speed:12300 rpm
Number of Rows:1
Outside Diameter:80 mm
Series:64 Series
Temperature Rating:120 deg C
Width:21 mm

Products Specifications

Bore Size
25 mm
Brand Name
FAG
Measuring Units
Metric
Outside Diameter
80 mm
Width
21 mm
