6406-A-C3 FAG

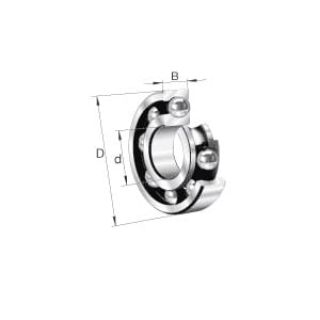

Picture of 6406-A-C3 FAG
Actual Product May Vary From Image

Product Details

Manufacturer:
INA
Manufacturer part number:
6406-A-C3
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$131.53 / EA

Description

Brand Name

FAG

Description

FAG Deep Groove Ball Bearing, Series: 64 Series, 30 mm Bore Dia, 90 mm Outside Dia, 1 Row, 23 mm W, Open Closure, 45500 N Dynamic/25000 N Static/1640 N Fatigue, Steel Bearing, Steel Cage, 10800 rpm Maximum, 120 deg C, Uncoated

Application

Textiles, Power Tools, Electric Motors, Pumps and Gearboxes

Standards

Meets to DIN 625-1

Features

C3 radial internal clearance

Specifications

Bearing Material:Steel
Bore Diameter:30 mm
Cage Material:Steel
Closure Type:Open
Finish:Uncoated
Load Capacity:45500 N Dynamic/25000 N Static/1640 N Fatigue
Maximum Speed:10800 rpm
Number of Rows:1
Outside Diameter:90 mm
Series:64 Series
Temperature Rating:120 deg C
Width:23 mm

Products Specifications

Bore Size
30 mm
Brand Name
FAG
Measuring Units
Metric
Outside Diameter
90 mm
Width
23 mm
