6439191262 LEE

Name: 6439191262 LEE
Brand: Leeson Electric
SKU: 6439191262 LEE
Price: 1,041.90 USD
Availability: OutOfStock

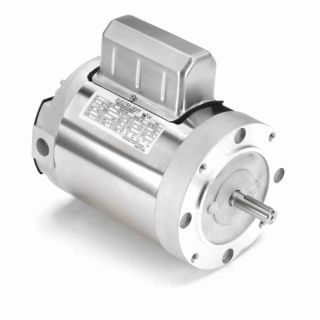

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

6439191262

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$1,041.90 / EA

Description

Brand Name

LEESON®

Type

4-Pole

Description

LEESON® AC Motor, 4-Pole, Hoist Motors Application, Capacitor Start Motors Special Features, 1 hp, 115/230 VAC, 13.6/6.8 A, 60 Hz Frequency, 1 ph, 1725 rpm Speed, 1 Speed, Totally Enclosed Nonvented (TENV) Enclosure, 56C Frame, 0.63 in Dia x 1.88 in L Shaft, Selective CCW Rotation, 1.15 Service Factor, Ball Bearing, 48.4 ft-lb Torque, Round/C-Face/Footless Mounting, 40 deg C, Insulation Class: Class B, Stainless Steel, 10:1 Variable Torque Speed, 6.5 in Dia x 11.7 in L x 8.7 in H Dimensions

Application

Boat Hoist Industry, Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Capacitor Start Motors

Specifications

Amperage Rating:	13.6/6.8 A
Application Type:	Hoist Motors
Bearing Type:	Ball
Country of Origin:	CN
Dimensions:	6.5 in Dia x 11.7 in L x 8.7 in H
Enclosure Type:	Totally Enclosed Nonvented (TENV)
Frame:	56C
Frequency Rating:	60 Hz
Horsepower:	1 hp
Insulation Class:	Class B
Material:	Stainless Steel
Mounting Type:	Round/C-Face/Footless
Number of Speeds:	1
Phase:	1
Rotation:	Selective CCW
Service Factor:	1.15
Shaft Size:	0.63 in Dia x 1.88 in L
Speed:	1725 rpm
Temperature Rating:	40 deg C
Torque Rating:	48.4 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	115/230 VAC
