64450-90103 TKN

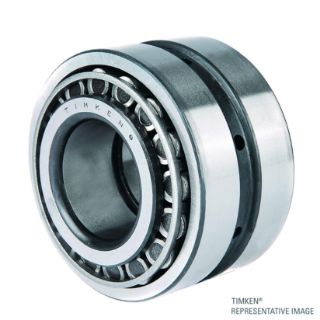

Picture of 64450-90103 TKN
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
64450-90103
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$5,629.68 / EA

Description

Brand Name

Timken®

Type

Type TDO

Description

The configuration of the TDO provides a wide effective bearing spread, making it ideal for applications in which overturning moments are a significant load component. TDO bearings can be used in fixed positions or allowed to float in the housing bore.
Timken®, 64450-90103, Tapered Roller Bearing Assembly, Type TDO, Series: 64000, 4-1/2 in Bore, 7 in OD, 2 Rows, 3-5/8 in Width, Open Closure, 108000 lb Dynamic/188400 lb Static Load, Steel Bearing, -65 to 250 deg F, Uncoated

Application

Heavy Duty Gear Drives and Various Industrial Configurations

Standards

ABMA/ANSI Standard

Features

  • Internal geometry provides increased stiffness and exceptional runout
  • Radial runout high point marked for accurate installation
  • Two row double outer race bearings (TDO) feature a double outer race (cup) and two single inner races (cones)
  • Outer race features groove and lubrication holes in the outside diameter
  • Most commonly sold with a spacer to control the axial internal clearance to eliminate the adjustment procedure
  • Internal axial clearance is marked on the spacer for identification and reorder purposes
  • Internal axial clearance is factory preset to create a matched bearing assembly
  • Components cannot be mixed with other components from another bearing assembly
  • Wide effective bearing spread that is ideal for applications in which overturning moments are a significant load component
  • Can be used in fixed positions or allowed to float in the housing bore

Includes

(1) 64450 2-3/4 in W Double Cone

Specifications

Bearing Material:Steel
Bore Diameter:4-1/2 in
Cage Material:Steel
Closure Type:Open
Finish:Uncoated
Load Capacity:108000 lb Dynamic/188400 lb Static
Number of Rows:2
Outside Diameter:7 in
Series:64000
Temperature Rating:-65 to 250 deg F
Width:3-5/8 in
