Actual Product May Vary From Image

645-1-3/8 GRL

Name: 645-1-3/8 GRL
Brand: Greenlee
SKU: 645-1-3/8 GRL
Availability: InStock

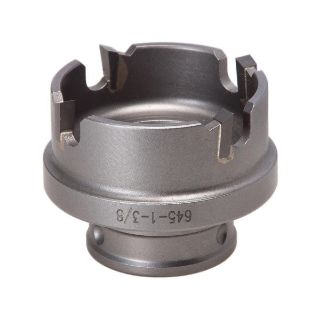

Greenlee® 645-1-3/8 Quick-Change Hole Cutter, 1-3/8 in Dia, 8 ga D Cutting, Tungsten Carbide Tip Cutting Edge, 3/8 in Arbor

Manufacturer: Greenlee

Manufacturer part number: 645-1-3/8

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	1
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Greenlee®

Type

Quick-Change

Alternate Supplier #

Grainger - 1FAJ1

Description

Greenlee® Hole Cutter, Quick-Change, Series: 645, 1-3/8 in Diameter, 8 ga Cutting Depth, 3/8 in Arbor, 1/4 x 2-1/2 in Drill, Tungsten Carbide Tip Cutting Edge, Teeth Cutting Edge, 3/8 in Chuck, 3/8 in Shank, Use Arbor: 645-011, Applicable Materials: Aluminum, Copper, Brass, Fiberglass, Mild Steel, Plastics and Stainless Steel

Application

For 1 in conduit

Standards

ARRA Compliant

Features

Cuts stainless steel quickly and easily
Quick-change™ arbor allows you to change cutter heads with a simple push and a turn
Use the same arbor for different size cutting heads
Flange stop prevents over drilling for safety
Ejector spring on all sizes above 3/4 in makes removal of slug easier
Replaceable cobalt steel pilot drill with split point tip to prevent walking
Precision carbide teeth for optimum performance and durability
645-011 arbor
645-001 replacement pilot drill
Switch quickly between cutter sizes without re-chucking, with a simple push and turn connection
Split-point cobalt steel pilot drill with step design for fast, accurate cutting with less force
Tungsten carbide teeth optimized design for fast, easy cutting and maximum life in stainless steel no oil required
Flange stop eliminates over-drilling
Slug ejector spring quick, easy slug removal cuts round, burr-free holes

Specifications

Applicable Materials:	Aluminum, Copper, Brass, Fiberglass, Mild Steel, Plastics and Stainless Steel
Arbor Size:	3/8 in
Chuck Size:	3/8 in
Country of Origin:	CN
Cutting Depth:	8 ga
Cutting Edge Material:	Tungsten Carbide Tip
Cutting Edge Style:	Teeth
Diameter:	1-3/8 in
Drill Size:	1/4 x 2-1/2 in
Series:	645
Shank Size:	3/8 in
Use Arbor:	645-011
