Actual Product May Vary From Image

645-1-7/32 GRL

Name: 645-1-7/32 GRL
Brand: Greenlee
SKU: 645-1-7/32 GRL
Availability: InStock

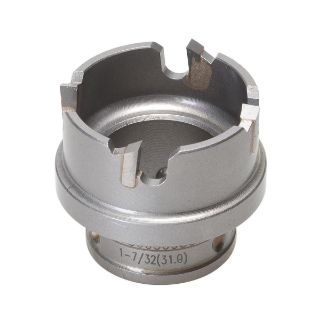

Greenlee® 645-1-7/32 Quick-Change Hole Cutter, 1-7/32 in Dia, 8 ga D Cutting, Tungsten Carbide Tip Cutting Edge, 3/8 in Arbor

Manufacturer: Greenlee

Manufacturer part number: 645-1-7/32

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	1
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Greenlee®

Type

Quick-Change

Description

Greenlee® Hole Cutter, Quick-Change, Series: 645, 1-7/32 in Diameter, 8 ga Cutting Depth, 3/8 in Arbor, 1/4 x 2-1/2 in Drill, Tungsten Carbide Tip Cutting Edge, Teeth Cutting Edge, 3/8 in Chuck, 3/8 in Shank, Use Arbor: 645-011, Applicable Materials: Aluminum, Copper, Brass, Fiberglass, Mild Steel, Plastics and Stainless Steel

Standards

ARRA Compliant

Features

Multiple tungsten carbide tips for long life and smooth cutting
Flange stop prevents over drilling for safety
Replaceable cobalt steel pilot drill with split point tip design to improve performance and resist walking
Eliminates need for center punch
Cut fast, accurate, high quality holes in stainless steel, copper, aluminum and steel
625-001 replacement pilot drill
Switch quickly between cutter sizes without re-chucking, with a simple push and turn connection
Split-point cobalt steel pilot drill with step design for fast, accurate cutting with less force
Tungsten carbide teeth optimized design for fast, easy cutting and maximum life in stainless steel no oil required
Flange stop eliminates over-drilling
Slug ejector spring quick, easy slug removal cuts round, burr-free holes

Specifications

Applicable Materials:	Aluminum, Copper, Brass, Fiberglass, Mild Steel, Plastics and Stainless Steel
Arbor Size:	3/8 in
Chuck Size:	3/8 in
Country of Origin:	CN
Cutting Depth:	8 ga
Cutting Edge Material:	Tungsten Carbide Tip
Cutting Edge Style:	Teeth
Diameter:	1-7/32 in
Drill Size:	1/4 x 2-1/2 in
Series:	645
Shank Size:	3/8 in
Use Arbor:	645-011
