64564XL315/16 BOS

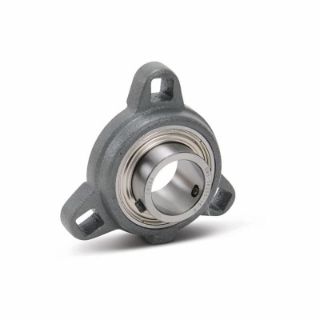

Picture of 64564XL315/16 BOS
Actual Product May Vary From Image

Product Details

Manufacturer:
Boston Gear
Manufacturer part number:
XL3 15/16
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Boston Gear®

Type

Light Duty

Description

Boston Gear® comprehensive selection of flanged bearings includes spherical bearings with extended inner races featuring setscrews or eccentric locking collars in stamped steel, ductile iron, cast iron or stainless housings. Positive locking by setscrews or an eccentric locking collar ensures smooth operation and a synthetic lip-type seal with steel flingers offer enhanced seal effectiveness.
Boston Gear® Flange Mount Ball Bearing Unit, Light Duty, Series: XL3, 15/16 in Bore, 3 in Diameter Bolt Circle, 3-Bolt Flange Mounting, 3-3/4 in Overall Length/Diameter, 1-1/8 in Overall Depth, Set Screw Locking Device, Ductile Cast Iron Bearing, Synthetic Seal, 455 lb Load, 5000 rpm Maximum, 225 deg F, Uncoated

Application

Material Handling, Packaging Machinery, Shrink Wrap Machinery and Printing Press Applications

Standards

PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm.

Specifications

Bearing Material:Ductile Cast Iron
Bolt Circle Diameter:3 in
Bore Diameter:15/16 in
Country of Origin:US
Finish:Uncoated
Flange Mounting Type:3-Bolt
Load Capacity:455 lb
Locking Device:Set Screw
Maximum Speed:5000 rpm
Overall Depth:1-1/8 in
Overall Length/Diameter:3-3/4 in
Seal Material:Synthetic
Series:XL3
Temperature Rating:225 deg F

Products Specifications

Brand Name
Boston Gear
Flange Type
3 Bolt Flange
Measuring Units
Inch
Shaft Diameter
15/16 in
