64733ST15/16 BOS

Name: 64733ST15/16 BOS
Brand: Boston Gear
SKU: 64733ST15/16 BOS
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Boston Gear

Manufacturer part number:

ST 1-5/16

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Boston Gear®

Type

Standard-Duty

Description

Boston Gear® comprehensive selection of flanged bearings includes non-metallic inserts in a non-metallic base for wash-down service, spherical bearings with extended inner races featuring setscrews or eccentric locking collars in stamped steel, ductile iron or cast iron housings. Positive locking by setscrews or an eccentric locking collar ensures smooth operation and a synthetic lip-type seal with steel flingers offer enhanced efficiency. Commonly used in material handling, packaging machinery, shrink wrap machinery and printing press applications.

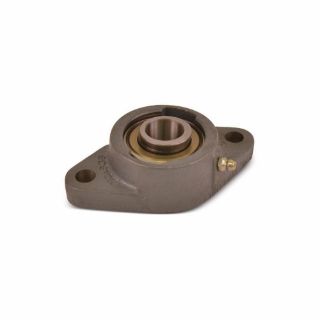

Boston Gear® Flange Mount Ball Bearing Unit, Standard-Duty, Series: ST Series, 1-5/16 in Bore, 5-1/8 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 3-11/64 in Overall Length/Diameter, 1-27/32 in Overall Depth, 6-1/8 in Overall Height, Set Screw Locking Device, Cast Iron Bearing, Synthetic Seal, 655 lb Load, 4500 rpm Maximum

Application

Material Handling, Packaging Machinery, Shrink Wrap Machinery and Printing Press Applications

Standards

PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm.

Features

One piece high grade cast iron housing
Deep groove ball bearings for high radial and thrust loads
Precision machined housing bore and spherical outer race for full self-alignment
Synthetic lip type seal with steel flinger
Positive locking by setscrews through extended inner race
1/4-28 threaded grease fitting and channel through outer race allow relubrication
Extended inner race

Specifications

Bearing Material:	Cast Iron
Bolt Center-to-Center Length:	5-1/8 in
Bore Diameter:	1-5/16 in
Country of Origin:	US
Flange Mounting Type:	2-Bolt
Load Capacity:	655 lb
Locking Device:	Set Screw
Maximum Speed:	4500 rpm
Overall Depth:	1-27/32 in
Overall Height:	6-1/8 in
Overall Length/Diameter:	3-11/64 in
Seal Material:	Synthetic
Series:	ST Series
