64W47 LEV

Name: 64W47 LEV
Brand: Leviton Manufacturing
SKU: 64W47 LEV
Price: 223.42 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leviton Manufacturing

Manufacturer part number:

64W47

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

$223.42 / EA

Description

Brand Name

Leviton®

Type

Grounding

Description

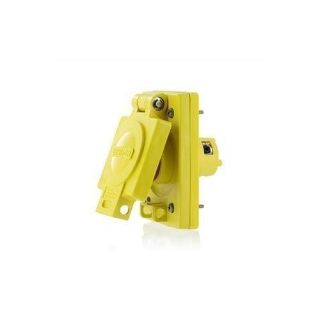

Leviton® Wetguard® Single Locking Inlet, Grounding, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA L5-15P NEMA Rating, Industrial Grade, NEMA 4/4X/12/IP66 Enclosure, -40 to 60 deg C, Screw Clamp Terminal, Nylon, Yellow, 4.63 in L x 3.13 in W x 2.9 in H Dimensions

Standards

ANSI C73 | CSA C22.2 No.42 | NEMA WD6 | NOM 057 | UL 498

Features

18 to 10 AWG terminal accommodation, grounding
2000 VAC dielectric strength
Maximum 30 deg C after 250 cycles OL at 200% rated current temperature rise
Most devices also available in black
Devices are UL and CSA listed and have enclosure ratings of NEMA 4, 4X, 12 and IEC IP66, IP67 when mated or with cover closed
Electroless nickel-coated brass terminal screws
Multi-point sealing system utilizes nut, strain relief washer and rubber bushing to form a watertight cord grip seal
Non-magnetic stainless steel fast threading assembly screws wont interfere with sensitive equipment
Connector hood closure cap seals device when not in use
Ratings are permanently marked on device product ID
Corrosion resistant electroless nickel-coated brass blades, contacts, terminal screws and wiring clamps and stainless steel assembly screws make these devices ideal for use in wet and corrosive environments
EPTR rubber part provides outstanding resistance to wet and damp environments, extreme temperature variations, water, acids, alkalis, grease, oils and many automotive and industrial lubricants and solvents
Plug and connector husk is molded to a bondable nylon body, providing a device that withstands physical abuse
Interlocking tongue and groove construction seals out water, moisture and dirt when plugs are mated with connectors
Valox PBT cover/lid and wiring module mounting cup
Santoprene TPV cover gasket
Stainless steel torsion spring mechanism
Electroless nickel-coated brass blades/contacts, terminal clamps

Specifications

Amperage Rating:	15 A
Color:	Yellow
Country of Origin:	US
Dimensions:	4.63 in H x 3.13 in W x 2.9 in D
Enclosure:	NEMA 4/4X/12/IP66
Grade:	Industrial
Material:	Nylon
NEMA Rating:	NEMA L5-15P
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-40 to 60 deg C
Terminal Type:	Screw Clamp
Voltage Rating:	125 VAC
