64W47 WOO

Name: 64W47 WOO
Brand: Molex (Woodhead)
SKU: 64W47 WOO
Price: 117.65 USD
Availability: OutOfStock

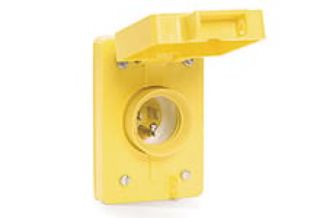

Actual Product May Vary From Image

Product Details

Manufacturer:

Molex (Woodhead)

Manufacturer part number:

64W47

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 12 days

Estimated dates are contingent upon manufacturer stock.

$117.65 / EA

Description

Brand Name

Woodhead®

Type

Male

Description

Woodhead® Watertite® wet-location wiring devices are rated for high pressure hose down application upto 1000 psi, the benchmark for the industry. The only devices made of NEo-TEX® Paracril OZO rubber, yields ultimate performance within a wide temperature range, around many oils, chemicals and abrasive conditions. Additional features include - unique multiple ring seals that lock snugly protecting against moisture and contaminants, sturdy compression type cord grips that provide high pull-out strength and a protective closure cap that seals the connector when it is not in use. Woodhead® Watertite® products are time tested devices that professionals demand.

Woodhead® Watertite® Locking Blade Receptacle, Male, Series: 130146, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA L5-15 Rating, NEMA 1/3/4/4X/5/6/6P/12/IP55/IP56/IP57/IP65/IP66/IP67 Enclosure, 0.062 to 0.625 in Diameter Cord, -40 to 75 deg C, Screw Terminal, NEoTEX® Paracril OZO Rubber, Yellow

Application

Breweries, Dairies, Food, Beverage, Wastewater, Water Treatment and Wet Locations Applications

Standards

UL File No. E68122 | CSA File No. LR6837 | NSF/ANSI/3-A 14159-1

Features

Color coded 1/4 in terminal screws preset in open position, ready to wire
Wire screw terminals are tri-drive to be used with straight blade, Phillips® and square drive screw drivers
Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
Transparent wiring guide to verify all wire strands are in place before securing wire
Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
3-piece strain relief seals cord without damaging the cord

Specifications

Amperage Rating:	15 A
Color:	Yellow
Cord Diameter:	0.062 to 0.625 in
Country of Origin:	MX
Enclosure:	NEMA 1/3/4/4X/5/6/6P/12/IP55/IP56/IP57/IP65/IP66/IP67
Horsepower:	1/2 hp
Material:	NEoTEX® Paracril OZO Rubber
NEMA Rating:	NEMA L5-15
Number of Poles:	2
Number of Wires:	3
Series:	130146
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw
Voltage Rating:	125 VAC
