65-0086 WOO

Name: 65-0086 WOO
Brand: Molex/Woodhead
SKU: 65-0086 WOO
Price: 20.73 USD
Availability: InStock

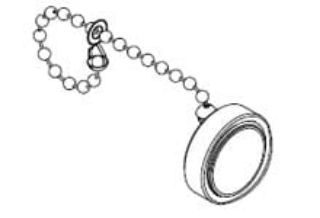

Brad® Mini-Change® 65-0086 130201 Internal Threaded Closure Cap, 7/8-16 UN-2A Thread, Aluminum

Manufacturer: Molex/Woodhead

Manufacturer part number: 65-0086

Availability: Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	5
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$20.73

Qty:

Product Details

Brand Name

Brad®

Type

Internal Threaded

Description

Brad® Mini-Change® connectors are the standard by which all miniature connectors are measured. First introduced in 1968, the Mini-Change® connector pioneered the market for rugged, sealed connectors in industrial applications. These connectors provided the first quick-connect alternative to hard-wiring.

Brad® Mini-Change® Closure Cap, Internal Threaded, Series: 130201, 7/8-16 UN-2A Thread, Aluminum, Anodized

Application

Commercial, Industrial Light Displays, Float Switches on Commercial Sump Pumps, Fractional Horse Power Motors, Industrial Heaters, Industrial Refrigeration Systems, Limit Switches, Linear Position Transducers, Load Cells, Power Connector to Street Light Accessories, Proximity and Photoelectric Sensors, Pumps, Solar Panels and Solenoid Operated Valves

Features

Maintains consistent pressure on the male pin to ensure optimum conductivity
High performance, long lasting plating that maintains low resistance through many mate/unmate cycles
Easier alignment and mating of connector
Provides 100 lb minimum cable strain relief
Radiates stress in side loaded conditions
Prevents the entry of water during temporary submersion at a limited depth
Internal, female thread
Anodized aluminum

Includes

Stainless Steel Bead Chain With Loop

Specifications

Country of Origin:	US
Finish:	Anodized
Material:	Aluminum
Series:	130201
Thread Size:	7/8-16 UN-2A
