6531-70M FLU

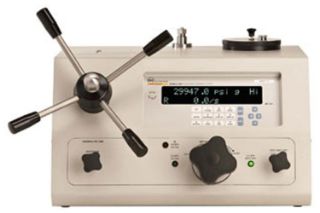

Picture of 6531-70M FLU
Actual Product May Vary From Image

Product Details

Manufacturer:
Fluke
Manufacturer part number:
6531-70M
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 6-8 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$40,330.00 / EA

Description

Brand Name

Fluke®

Type

Electronic

Description

Fluke® calibration electronic deadweight tester kits feature E-DWT-H configurations combined with the accessories needed for a complete calibration system. Model 6531 options feature E-DWT-H configurations with a single quartz reference pressure transducer (Q-RPT) to offer percent of reading performance from 10 to 100% of device full scale. Model 6532 options feature an additional Q-RPT to maximize workload coverage, with percent of reading performance from 1 to 100 % of device full scale. An included vacuum fill kit allows the E-DWT to be filled with your choice of compatible fluid, while eliminating problematic air pockets from the test circuit. Also included is a test station adapter to mount just about any pressure device to be tested without using PTFE tape or wrenches. 6531 and 6532 kits provide all you need to perform high level hydraulic pressure calibration right out of the box.
Fluke® E-DWT-H™ Deadweight Tester Kit, Electronic, Series: 6531, 1000 to 10000 psi Pressure, 0.01% Resolution, +/-0.02%, 0.025% Accuracy, 16.3 in Width, 14.6 in Depth

Application

For use in the lab or instrument shop, in field for performing in-situ calibrations and tests

Features

  • No weights to load and unload, transport or send out for calibration
  • Provides real time pressure indication with no need to know and correct for local gravity or ambient temperature
  • No piston cylinder changes
  • No significant sensitivity to level or vibration
  • Able to set and read any pressure value exactly
  • Operates in any unit of measure, switching easily from one unit to the next
  • +/-0.02% of reading total 1 year, 0.025% for 2 years accuracy
  • Low torque variable volume allows for pressure generation and control up to 200 MPa (30000 psi) with minimal physical effort
  • Built-in priming system to fill system with test fluid and purge unwanted air to assure smooth operation
  • Compatible with a wide range of liquids, including water
  • AutoTest™, AutoRange, ready/not ready indicator, onboard data capture and storage, overpressure alarm, RS-232 remote interface and other advanced features to simplify testing, improve safety and prevent calibration errors and damage to equipment
  • Rechargeable battery pack and transport case options for field operation
  • No minimum increment limited by smallest available masses
  • Perfect for applications that require setting a nominal pressure precisely on the device under test and measuring it, such as analog gauge calibration

Includes

E-DWT-H Electronic Deadweight Tester, Power Supply, Operating Manual, Vacuum Liquid Fill Kit, Test Station Quick Mount Fitting, 1/8, 1/4, 3/8, 1/2 in NPT, BSP Adapters, M20x1.5, M14x1.5 Metric Adapters

Specifications

Accuracy:+/-0.02%, 0.025%
Depth:14.6 in
Pressure Rating:1000 to 10000 psi
Resolution:0.01%
Series:6531
Width:16.3 in
