65W47DPLXGF WOO

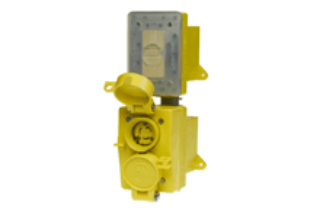

Picture of 65W47DPLXGF WOO
Actual Product May Vary From Image

Product Details

Manufacturer:
Molex (Woodhead)
Manufacturer part number:
65W47DPLXGF
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$728.68 / EA

Description

Brand Name

Woodhead®

Type

Female

Description

Woodhead® Watertite GFCI Receptacle, Female, Series: 130155, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA L5-15 NEMA Rating, IP67 Enclosure

Application

For closure caps and additional support with strain relief grips

Features

  • Duplex receptacle
  • Multiple seal connector interface keeps out contaminants; resists vapor and water from high pressure wash down up to 1000psi
  • Color-coded 1/4 in terminal screws preset in open position, ready to wire
  • Wire screw terminals are tri-drive to be used with straight-blade, Phillips and square-drive screw drivers
  • Floating blade construction provides self-alignment, and a better mechanical and electrical connection minimizing wear and heat generation
  • Transparent wiring guide to verify all wire strands are in place before securing wire
  • Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
  • Three piece strain-relief seals cord without damaging the cord

Includes

Flip Lid

Specifications

Amperage Rating:15 A
Country of Origin:MX
Enclosure:IP67
NEMA Rating:NEMA L5-15
Number of Poles:2
Number of Wires:3
Series:130155
Voltage Rating:125 VAC
