66 1/2 A,B SP HUB

Product Details

Manufacturers:
Manufacturer part number:
0220-03611
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.

Description

Brand Name

Hub City®

Type

Right Angle Spiral Single Reduction Style A B

Description

Regal Beloit offers a wide array of enclosed spiral or straight bevel gearing solutions with universal mounting for right angle transmission.

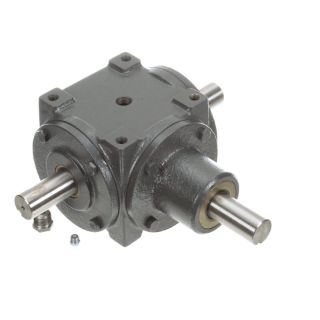

Hub City® Bevel Gear Reducer, Right Angle Spiral Single Reduction Style A B, Series: 66 Series, 1:2 Gear Ratio, 19.9 hp, Shaft Input, Shaft Output, 1-1/4 in Dia x 2-9/16 in L Input, 1 in Dia x 2-1/2 in L Output, 2300 rpm Output Maximum Speed, 1150 rpm Input Maximum Speed, 545 in-lb, 8-7/16 in Centre Distance, 1/4 x 1/8 in Input/Output Keyway, 97.5 % Efficiency, Conventional Oil Lubrication, Four-Bolt Surface Mount, Cast Iron, 12-1/4 in W x 11-1/4 in D x 5-5/8 in H

Application

Agriculture, Aerospace, Construction, Food Processing, Medical, Material Handling, Packaging, Recreation and Transportation

Standards

AGMA Class 1

Features

  • Rugged cast iron housing
  • Universal mounting dimensions
  • Alloy shafting
  • Heavy duty industrial seals

Specifications

Centre Distance:8-7/16 in
Country of Origin:US
Dimensions:12-1/4 in W x 11-1/4 in D x 5-5/8 in H
Efficiency:97.5 %
Gear Ratio:1:2
Horsepower:19.9 hp
Input Maximum Speed:1150 rpm
Input Size:1-1/4 in Dia x 2-9/16 in L
Input Type:Shaft
Keyway Size:1/4 x 1/8 in Input/Output
Lubrication Type:Conventional Oil
Material:Cast Iron
Mounting Type:Four-Bolt Surface
Output Maximum Speed:2300 rpm
Output Size:1 in Dia x 2-1/2 in L
Output Type:Shaft
Series:66 Series
Torque Rating:545 in-lb
