66 1.53/1 D,E SP HUB

Name: 66 1.53/1 D,E SP HUB
Brand: Hub City
SKU: 66 1.53/1 D,E SP HUB
Price: 2,477.37 USD
Availability: OutOfStock

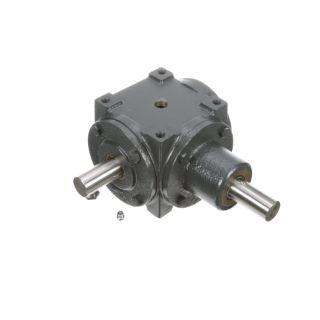

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City , Hub City , Hub City

Manufacturer part number:

0220-03553

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$2,477.37 / EA

Description

Brand Name

Hub City®

Type

Right Angle Spiral Single Reduction Style D E

Description

Regal Beloit offers a wide array of enclosed spiral or straight bevel gearing solutions with universal mounting for right angle transmission.

Hub City® Bevel Gear Reducer, Right Angle Spiral Single Reduction Style D E, Series: 66 Series, 1.53:1 Gear Ratio, 35 hp, Shaft Input, Shaft Output, 1-1/4 in Dia x 2-9/16 in L Input, 1-1/4 in Dia x 2-1/2 in L Output, 1143.8 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 1887 in-lb, 8-7/16 in Centre Distance, 1/4 x 1/8 in Input/Output Keyway, 97.5 % Efficiency, Conventional Oil Lubrication, Four-Bolt Surface Mount, Cast Iron, 11-1/4 in D x 5-5/8 in H

Application

Agriculture, Aerospace, Construction, Food Processing, Medical, Material Handling, Packaging, Recreation and Transportation

Standards

AGMA Class 1

Features

Rugged cast iron housing
Universal mounting dimensions
Alloy shafting
Heavy duty industrial seals

Specifications

Centre Distance:	8-7/16 in
Country of Origin:	US
Dimensions:	11-1/4 in D x 5-5/8 in H
Efficiency:	97.5 %
Gear Ratio:	1.53:1
Horsepower:	35 hp
Input Maximum Speed:	1750 rpm
Input Size:	1-1/4 in Dia x 2-9/16 in L
Input Type:	Shaft
Keyway Size:	1/4 x 1/8 in Input/Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Mounting Type:	Four-Bolt Surface
Output Maximum Speed:	1143.8 rpm
Output Size:	1-1/4 in Dia x 2-1/2 in L
Output Type:	Shaft
Series:	66 Series
Torque Rating:	1887 in-lb
