6602-220 LEV

Product Details

Manufacturer part number:
6602-220
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Leviton®

Type

Deluxe Electro-Mechanical Full Range Residential Grade

Description

Leviton® offers many products that will help lower electrical costs and add convenience to everyday living. By simply replacing standard switches with dimmers reduces energy consumption and extends bulb life. IllumaTech® preset dimmers and fan speed controls feature a low profile fluid slide bar movement for fine adjustment of light levels or fan speeds that's accompanied by an easy to use ON/OFF preset switch. The switch provides quick ON/OFF control without disturbing your favorite pre-selected settings. Most feature a built-in LED locator light, as well. Models are available for incandescent, magnetic or electronic low voltage and Mark 10® Powerline dimming ballast fluorescent lighting and quiet and standard fan speed control.

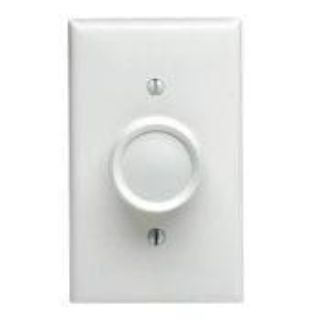

Leviton® Trimatron™ Dimmer Switch, Deluxe Electro-Mechanical Full Range Residential Grade, 220 VAC, 600 W Power, 50 Hz Frequency, 1 Pole, Incandescent Lamp, Operation Mode: On/Off, Rotary Control, Wall Mounting, Lead Wire Terminal, 32 to 130 deg F, White, 4 in H x 1.59 in W x 0.92 in D Dimensions

Application

Commercial Applications

Standards

UL File No. E31373 | CSA File No. LR3413 | NOM 057 | UL94 V-2 Flammability Rating

Features

  • Trimatron™ rotary dimmers feature an ultra compact design with wire leads for fast, easy installation even in tight, 1-gang wallboxes
  • All dimmers in the Trimatron™ line feature super reliable circuitry and a built-in radio/TV interference filter
  • Trimatron™ rotary dimmers offer full range dimming with positive ON/OFF switching in push-ON/push-OFF rotary or rotary ON/OFF models
  • Trimatron™ rotary fan speed controls can operate any number of ceiling fans within rated limits
  • All Trimatron™ quiet fan rotary speed controls have special circuitry to reduce fan motor noise at low speeds
  • Use with Leviton® power extender to extend load capacity
  • All Trimatron™ dimmers are compatible with Leviton® standard toggle switch wallplates and are easily gangable

Specifications

Color:White
Control:Rotary
Country of Origin:CN
Dimensions:4 in H x 1.59 in W x 0.92 in D
Frequency Rating:50 Hz
Lamp Type:Incandescent
Mounting Type:Wall
Number of Poles:1
Operation Mode:On/Off
Power Rating:600 W
Temperature Rating:32 to 130 deg F
Terminal Type:Lead Wire
Voltage Rating:220 VAC
