6602-IW LEV

Name: 6602-IW LEV
Brand: Leviton Manufacturing
SKU: 6602-IW LEV
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leviton Manufacturing

Manufacturer part number:

6602-IW

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Leviton®

Type

Deluxe Electro-Mechanical Full Range Residential Grade

Description

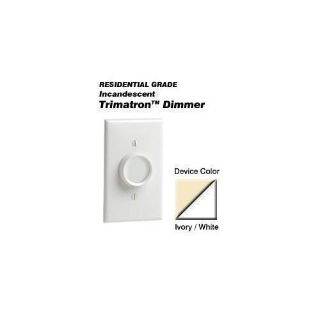

Leviton® Trimatron™ lighting controls are traditional rotary style dimmers that are renowned for their compact, easy-to-install design and outstanding reliability. Trimatron™ dimmers are only half as deep as many conventional rotary style dimmers, providing an easy fit even in shallow wall boxes. They are furnished with wire leads to further speed installation. Trimatron™ dimmers are available in single pole (one location) and 3-way (multi-location) deluxe push-ON/push-OFF versions for incandescent lighting and fan speed control. The Trimatron™ line also includes rotary ON/OFF dimmers and quiet fan speed controls.

Leviton® Trimatron™ Dimmer Switch, Deluxe Electro-Mechanical Full Range Residential Grade, 220 VAC, 600 W Power, 50 Hz Frequency, 1 Pole, Incandescent Lamp, Operation Mode: On/Off, Rotary Control, Wall Mounting, Lead Wire Terminal, 32 to 130 deg F, Ivory/White, 4 in H x 1.59 in W x 0.92 in D Dimensions

Application

Commercial Applications

Standards

UL File No. E31373 | CSA File No. LR3413 | NOM 057 | UL94 V-2 Flammability Rating

Features

Trimatron™ rotary dimmers feature an ultra compact design with wire leads for fast, easy installation even in tight, 1-gang wallboxes
All dimmers in the Trimatron™ line feature super reliable circuitry and a built-in radio/TV interference filter
Trimatron™ rotary dimmers offer full range dimming with positive ON/OFF switching in push-ON/push-OFF rotary or rotary ON/OFF models
Trimatron™ rotary fan speed controls can operate any number of ceiling fans within rated limits
All Trimatron™ quiet fan rotary speed controls have special circuitry to reduce fan motor noise at low speeds
Use with Leviton® power extender to extend load capacity
All Trimatron™ dimmers are compatible with Leviton® standard toggle switch wallplates and are easily gangable

Specifications

Color:	Ivory/White
Control:	Rotary
Country of Origin:	CN
Dimensions:	4 in H x 1.59 in W x 0.92 in D
Frequency Rating:	50 Hz
Lamp Type:	Incandescent
Mounting Type:	Wall
Number of Poles:	1
Operation Mode:	On/Off
Power Rating:	600 W
Temperature Rating:	32 to 130 deg F
Terminal Type:	Lead Wire
Voltage Rating:	220 VAC
