660H150 GAT

PowerGrip™ Timing
Manufacturer: Gates
Manufacturer part number: 660H150
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
2 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$117.94

Product Details

Brand Name

Gates

Alternate Supplier #

92573314

Description

The trapezoidal tooth profile of PowerGrip™ Timing belts offers a maintenance-free and economical alternative to conventional chain drives and is well suited for use in positioning applications.

Features

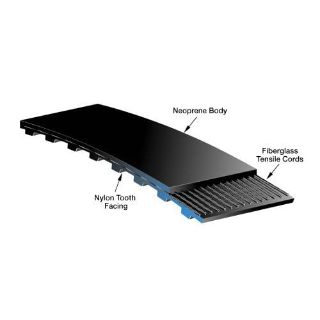

Fiberglass tensile cord provides high strength, excellent flex life and high resistance to elongation. Neoprene body provides protection against grime, grease, oil and moisture. Nylon tooth facing provides a durable wear surface for long service life. Maintenance-free, clean solution for roller chain drive conversion with no lubrication or retensioning required.

Specifications

Belt Back Side:Smooth
Belt Height (in):0.16
Belt Height (mm):4.1
Belt/Slab:Belt
Color:Black
Cord Material:Fiberglass
Country of Origin:US
End:Endless
Fabric Material:Nylon Teeth
GC Base Product:PowerGrip® Timing Belts - 1/2" Pitch (.500"/H)
Harmonized Tariff Code:4010.36.4500
Length Pitch (in):66
Length Pitch (mm):1676
Material:Polychloroprene (Neoprene)
Max Temp (°C):+100
Max Temp (°F):+212
Min Temp (°C):-30
Min Temp (°F):-22
Number of Teeth:132
Pitch (in):0.5
Pitch (mm):13
Proposition 65:NO
Section:H
Sided:Single Sided
Sprock Comptab:PowerGrip GT
Standard Width:YES
Stat Conductive:No
Tooth Form:Trapezoidal Design
Tooth Height (in):0.09
Tooth Height (mm):2.29
Width (in):1.5
Width (mm):38
