6629-3W LEV

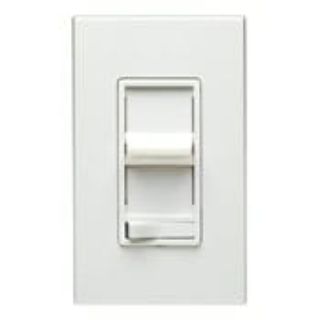

Picture of 6629-3W LEV
Actual Product May Vary From Image

Product Details

Manufacturer:
Leviton Manufacturing
Manufacturer part number:
6629-3W
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Leviton®

Type

1-Pole 3-Way Electro-Mechanical

Description

Leviton® SureSlide® dimmers and fan speed controls feature elegant Decora® styling that coordinates perfectly with the entire line of Decora® designer products. Two control options are available, a full range preset fan speed control which supports fan loads of up to 5 amps as well as a quiet 1.5 A fan speed control which is ideal for libraries, study rooms and any area where ceiling fan noise could become distracting.
Leviton® Fan Speed Control, 3-Way Electro-Mechanical, 120 VAC, 1.5 A, On/Off Operational Mode, Wall Mounting, 0 to 55 deg C, White, Environmental Conditions: -10 to 85 deg C Non-Operating Temperature, 20 to 90% Non-Condensing Relative Humidity, 4.13 in H x 1.73 in W x 1.53 in D

Application

Commercial Applications

Standards

CSA File No. LR3413 | UL File No. E31373

Features

  • Preset versions feature a separate on/off switch that preserves the selected brightness or fan speed setting
  • Dimmers and fan speed controls feature elegant designer styling that coordinates perfectly with Leviton® extensive line of Decora® wiring devices and wallplates
  • Preset versions provide single pole or 3-way lighting control when used with a 3-way switch
  • Illuminated versions feature optional use locator light
  • Slim compact housing fits easily into standard wallbox and is suitable for multi-gang installations
  • Built-in radio/TV interference filter
  • Quiet fan speed controls have special circuitry to reduce fan motor noise at low speeds, full range 5 A fan speed controls are available

Specifications

Amperage Rating:1.5 A
Color:White
Country of Origin:CN
Dimensions:4.13 in H x 1.73 in W x 1.53 in D
Environmental Conditions:-10 to 85 deg C Non-Operating Temperature, 20 to 90% Non-Condensing Relative Humidity
Mounting:Wall
Operational Mode:On/Off
Temperature Rating:0 to 55 deg C
Voltage Rating:120 VAC
