663-90093 TKN

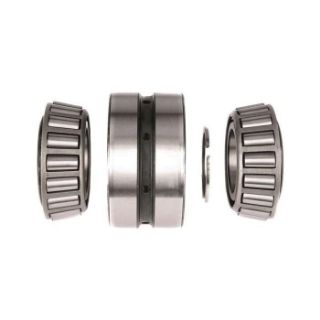

Picture of 663-90093 TKN
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
663-90093
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$2,408.32 / EA

Description

Brand Name

Timken®

Type

Type TS

Description

TS single row is the basic and the most widely used type of tapered roller bearing. It consists of the inner-ring assembly and the outer ring. It is usually fitted as one of an opposing pair. During equipment assembly, single-row bearings can be set to the required clearance endplay or preload condition to optimize performance.
Timken®, 663-90093, Tapered Roller Bearing, Type TS, 3-1/4 in Bore, 5-3/4 in OD, 1 Rows, 1-5/8 in Width, 55500 lb Dynamic/75300 lb Static Load, Steel Bearing, -65 to 250 deg F

Application

Vehicle Front Wheels, Differential and Pinion Configurations, Conveyor Rolls, Machine Tool Spindles, Trailer Wheels and General Purpose Applications

Standards

ABMA/ANSI Standard

Features

  • Internal geometry provides increased stiffness and exceptional runout
  • Radial runout high point marked for accurate installation

Includes

(1) 1-5/8 in W Cone and (1) 1-1/4 in W Cup

Specifications

Bearing Material:Steel
Bore Diameter:3-1/4 in
Cage Material:Steel
Load Capacity:55500 lb Dynamic/75300 lb Static
Number of Rows:1
Outside Diameter:5-3/4 in
Temperature Rating:-65 to 250 deg F
Width:1-5/8 in
