66W07 LEV

Name: 66W07 LEV
Brand: Leviton Manufacturing
SKU: 66W07 LEV
Price: 258.64 USD
Availability: OutOfStock

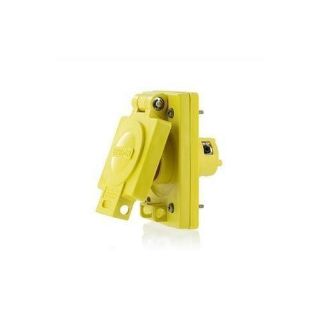

Actual Product May Vary From Image

Product Details

Manufacturer:

Leviton Manufacturing

Manufacturer part number:

66W07

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

$258.64 / EA

Description

Brand Name

Leviton®

Type

Non-Grounding

Description

Leviton® Wetguard® Single Locking Inlet, Non-Grounding, 250 VAC, 20 A, 2 Pole, 2 Wires, NEMA L2-20P NEMA Rating, Industrial Grade, NEMA 4/4X/12/IP66 Enclosure, -40 to 60 deg C, Screw Clamp Terminal, Valox® Polybutylene Terephthalate, Yellow, 4.63 in H x 3.13 in W x 2.9 in D Dimensions

Standards

ANSI C-73 | UL498 | CSA C22.2 No.42 | NOM 057 | UL94 V-2 Flammability Rating

Features

Withstands 2000 VAC per UL 498 dielectric voltage
Maximum 30 deg C after 250 cycles overload at 200% rated current temperature rise
Santoprene TPV cover gasket
Stainless steel torsion spring mechanism
Electroless nickel coated brass blades/contacts, terminal clamps, terminal screws
Stainless steel, non-magnetic mounting and assembly screws
16 to 10 AWG terminal accommodation
Corrosion resistant and wetguard

Specifications

Amperage Rating:	20 A
Color:	Yellow
Country of Origin:	MX
Dimensions:	4.63 in H x 3.13 in W x 2.9 in D
Enclosure:	NEMA 4/4X/12/IP66
Grade:	Industrial
Material:	Valox® PBT
NEMA Rating:	NEMA L2-20P
Number of Poles:	2
Number of Wires:	2
Temperature Rating:	-40 to 60 deg C
Terminal Type:	Screw
Voltage Rating:	250 VAC
